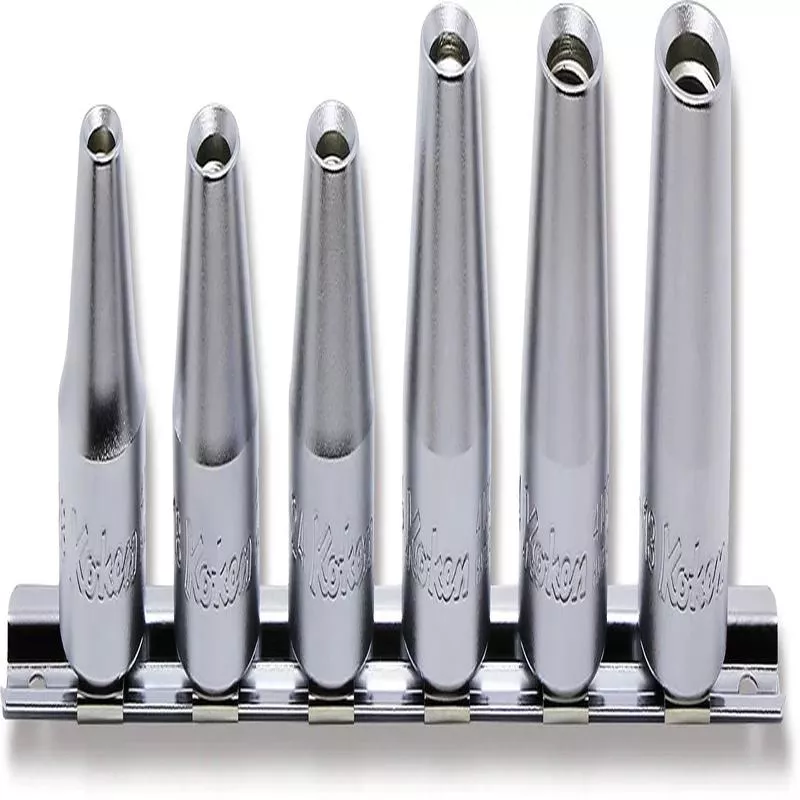

1/2 DRIVE SAE, STUDSETTER SET
The Stud Bolt Setter is a special socket for installing a stud bolt. The bolt contact with a steel ball to prevent the bolt from sticking onto the socket. After installing the bolt, turn anti-clockwise to remove the socket.
| Input Drive Size: | 1/2″ |
| Drive Shape: | Square |
| Length: | 200mm Rail |
| Type: | Stud Bolt Setter Set |
| Output Sizes: | 1/4(28), 5/16(18) ,5/16(24), 3/8(16), 7/16(14), 1/2(13) |
Includes:
| SKU | DESCRIPTION | LENGTH |
| 4103A-1/4(28) | 1/2 Sq. Dr. Stud Bolt Setter 1/4 X 28UNF | 37mm |
| 4103A-5/16(18) | 1/2 Sq. Dr. Stud Bolt Setter 5/16 X 18UNC | 37mm |
| 4103A-5/16(24) | 1/2 Sq. Dr. Stud Bolt Setter 5/16 X 24UNF | 37mm |
| 4103A-3/8(16) | 1/2 Sq. Dr. Stud Bolt Setter 3/8 X 16UNC | 44mm |
| 4103A-7/16(14) | 1/2 Sq. Dr. Stud Bolt Setter 7/16 X 14UNC | 44mm |
| 4103A-1/2(13) | 1/2 Sq. Dr. Stud Bolt Setter 1/2 X 13UNC | 44mm |
