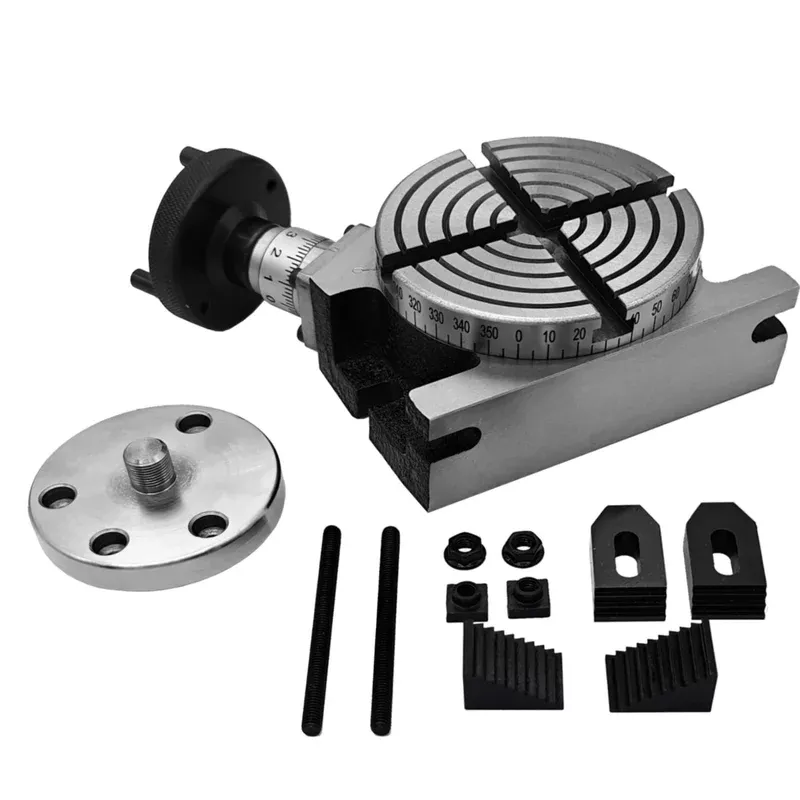

This compact rotary table / indexing table is designed for accurate work positioning in metalworking applications. It allows the operator to drill, mill, or cut workpieces at precise angular intervals around a fixed axis, making it ideal for tasks such as bolt circles, gear cutting, slotting, and indexing operations.
Its compact and low-profile design makes it perfect for small milling machines, bench lathes, and drill presses fitted with a compound table. The table can be mounted horizontally or vertically, providing excellent flexibility for a wide range of machining setups.
The 36:1 worm gear ratio ensures smooth and precise rotation, while the graduated hand wheel allows accurate control when indexing or positioning the workpiece.
A back plate and clamping kit are included, allowing quick and secure mounting of workpieces or small chucks.
Features
- 36:1 precision worm gear ratio for accurate indexing
- 360 table graduations for precise positioning
- Handwheel with 10-minute graduations for fine adjustment
- Zero-set handwheel for convenient reference setting
- Compact design ideal for small mills, lathes, and drill presses
- Can be mounted horizontally or vertically for versatile use
-
Compatible with 3-jaw chucks, 4-jaw independent chucks, and ER collet adaptors (available separately)
Rotary Table Specifications
- Size: 4″ / 100mm
- Gear Ratio: 36:1
- Table Graduation: 0-360
- Handwheel Graduation: 10 minutes
- Height: 55mm
- T-Slot Size: 8mm
- Clamping Kit Size: M6
-
Through Bore: None
Back Plate Specification:
- Size: 80mm
- Mounting Thread: M14x1.0mm
Clamping Kit 10pcs Set Inclusions:
- M6 Stud x 2
- M6 T-Nut x 2
- M6 Flange Nut x 2
- Step Clamps x 2
- Step Blocks x 2
