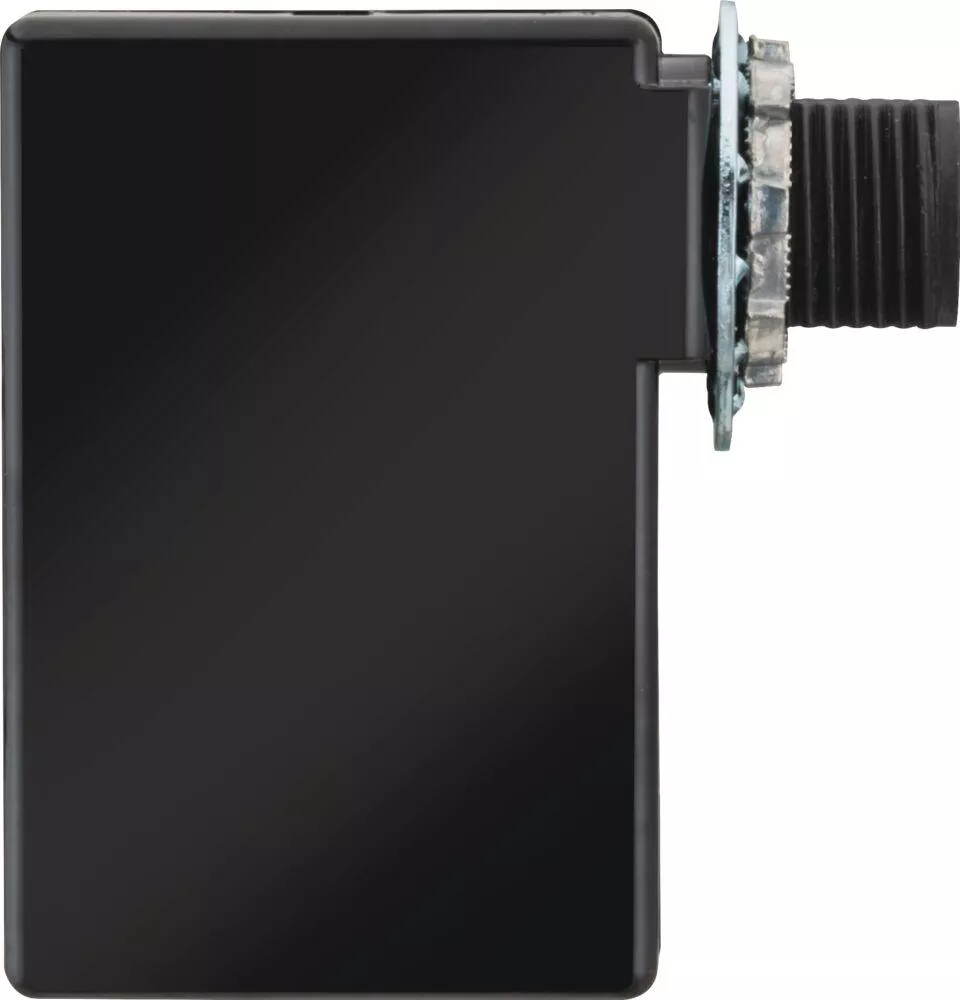

The MP20 power/relay pack works with low voltage occupancy sensors to switch lighting loads on and off. The MP20 also transforms 120, 240, and 277 VAC single phase power to Class 2 15 VDC to power remote sensors. Although plenum rated, the elongated mounting nipple allows for these packs to be mounted either directly through a 1/2 inch knockout in a junction box, or to be located inside an adjacent box for specific local code requirements. Up to 14 sensors may be connected to one MP20. Multi-circuit control can be handled by multiple MP20. MP20s can be wired continuously hot (line side), or on the switch leg (load side) without nuisance delays upon turn on.FEATURES:• Powers Low Voltage Sensors (MP20)• Switches Line Voltage Loads• Plenum Rated
Specifications
| Brand Name | Acuity Controls | Sub Brand | Sensor Switch |
| Item Name | Power/Relay Pack | Type | Mini |
| Voltage Rating | 120/277 VAC Input, 15 VDC Output | Amperage Rating | 150 mA at 120/277 VAC |
| Color | Black | Series/Model | MP20 |
| Power Rating | 1 hp | Material | Plastic Lens |
| Finish | Gloss | Dimensions | 2-1/4 in W x 1.88 in D x 3 in H |
| Mounting | 1/2 in Knockout | Warranty | 5 yr Limited |
| Standards | UL Listed, RoHS Compliant | Application | For Education, Government, Healthcare, Hospitality, Manufacturing, Offices and Banks, Religious, Retail, Sports and Recreation, Warehouses |
| UPC | 745975809585 |
