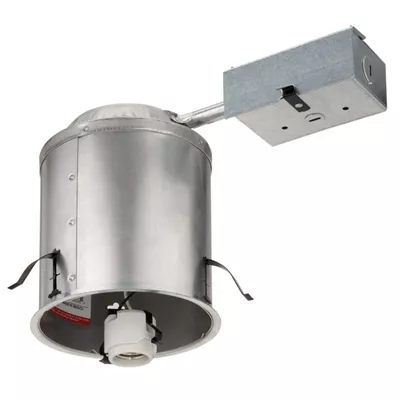

Recessed incandescent housing for 2×8 remodel construction. Approved for direct burial in insulation and all ceiling and wiring types.L5R: Air-tight aluminum housing with heavy-gauge galvanized steel raceway arm. Remodel clips for installation in existing plaster, sheet rock or mechanical ceilings. Galvanized steel junction box with three built-in ROMEX® clamps and ground wire. Not suitable for pulling wires. Rated for 90°C. Socket clips to trim to ensure proper and consistent lamp position.Trim retention (clips): Retaining clips riveted to top of reflector hold trim inside housing.Trim retention (TOR): Two side-mounted torsion springs on the trim and two receiving brackets in the can, ensure a consistently tight fit with the ceiling. Suitable for ceilings up to 1-1/2″ thick. UL Listed to U.S. and Canadian safety standards.
Specifications
| Brand Name | Lithonia Lighting | Item Name | 5 in IC Housing |
| Type | Remodel | Voltage Rating | 120 V |
| Ceiling Opening | 5-5/8 in | Lamp Type | Incandescent |
| Housing Material | Aluminum, Galvanized Steel Raceway Arm | Series | L5R |
| Mounting Type | Recessed | Diameter | 156 mm |
| Height | 191 mm | Width | 292 mm |
| Standards | cULus Listed | Application | For Damp Locations |
| UPC | 745973345276 |
