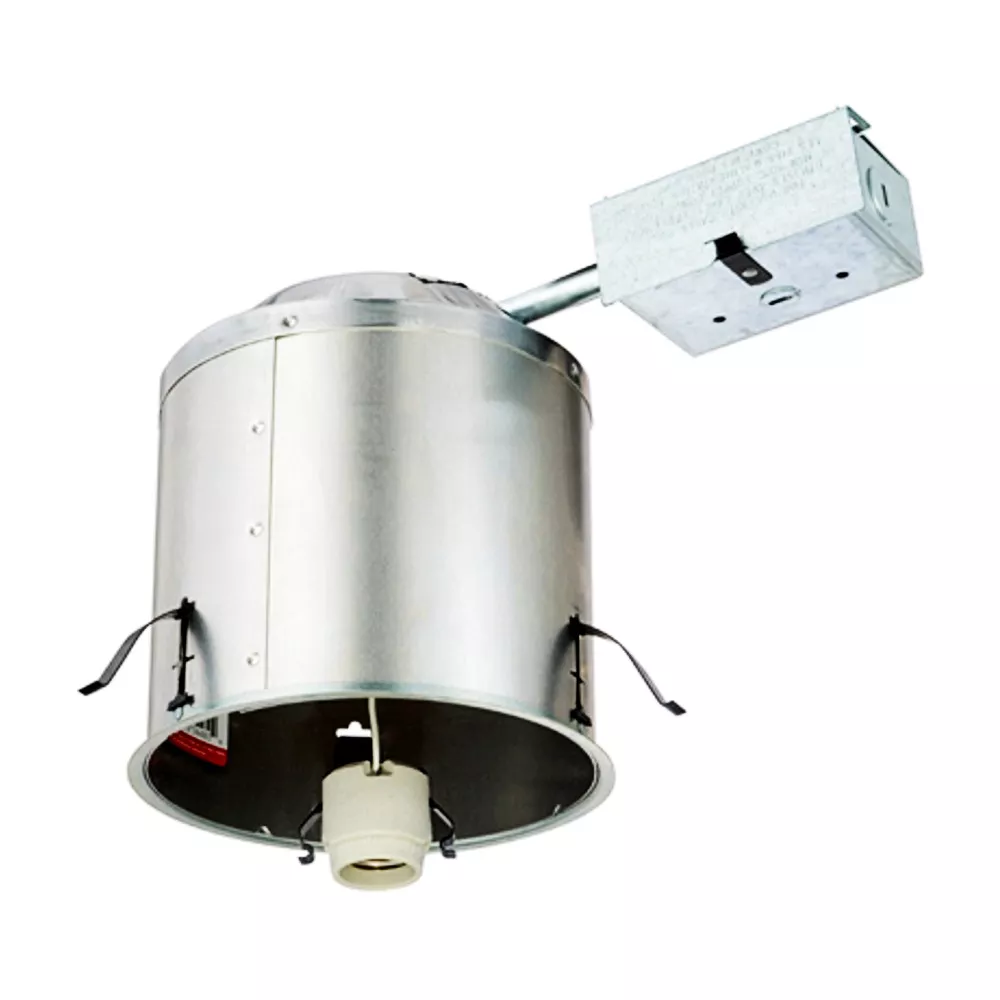

Recessed incandescent housings for 2×8 new construction. Approved for direct burial in insulation and all ceiling and wiring types.ConstructionL7X: Air-tight, galvanized steel pan with aluminum can and junction box with four built-in ROMEX® clamps and ground wire. Rated for 90°C. Factory-installed captive bar hangers that span up to 24 o.c. and feature stepped shank nail with integral T-bar locks. Two locking screws hold fixture position. Socket clips to trim to ensure proper and consistent lamp position.Trim retention (clips): Retaining clips riveted to top of reflector hold trim inside housing.Trim retention (TOR): Two side-mounted torsion springs on the trim and two receiving brackets in the can, ensure a consistently tight fit with the ceiling.Suitable for ceilings up to 1-1/2″ thick.
Specifications
| Brand Name | Lithonia Lighting | Item Name | 6 in Round Trim IC/Non-IC Housing |
| Type | Remodel | Voltage Rating | 120 V |
| Ceiling Opening | 6-7/8 in | Lamp Type | Incandescent |
| Housing Material | Aluminum, Galvanized Steel Raceway Arm | Series | L7XR |
| Mounting Type | Recessed | Diameter | 184 mm |
| Height | 190 mm | Width | 311 mm |
| Standards | cULus Listed | Application | For Damp Locations |
| UPC | 745973789704 |
