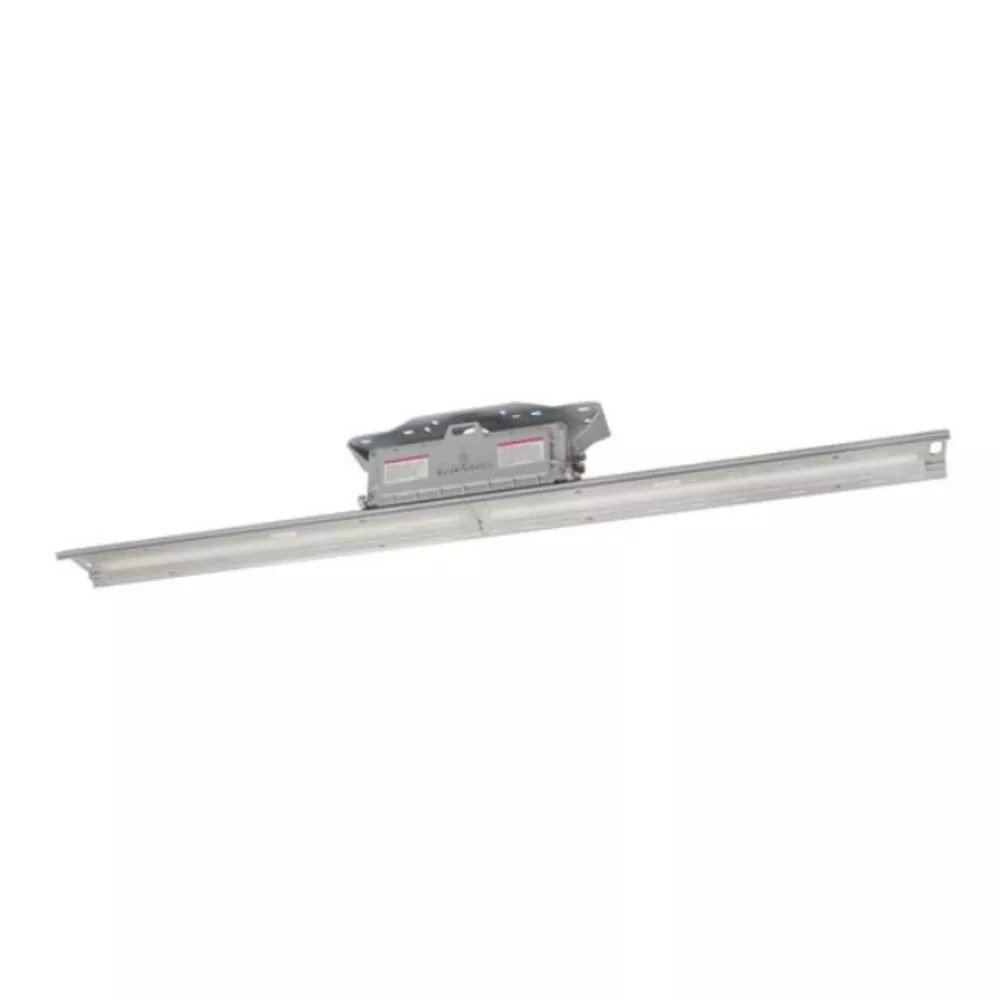

RigMaster Linear LED, 8K, C, P, L, BH, N, G, W. Light weight and low profile design makes installation easy even in compact spaces. Hinged wire box cover with captive screws for easy installation and maintenance. Five safety retention points to secure fixture and enhance workplace safety. Mounting brackets support numerous bolt patterns to facilitate retrofit installation. Wire nuts and screw type terminal block options provide added wiring flexibility. Notched position locking mechanism for aiming consistency. The standard fixture offers up to 7600 lumens of uniform high quality illumination. Operating in emergency mode, the Rigmaster delivers up to 1350 lumens with 90 min and 180 min battery backup options. Industry-leading thermal management for safe, reliable operation over wide temperature range.
Specifications
| Brand Name | Appleton | Sub Brand | RigMaster |
| Item Name | LED Fixture | Type | Linear |
| Voltage Rating | 347 – 480 VAC | Fixture Wattage | 96 W |
| Lamp Type | T8 LED | Application | For use in Wet Locations |
| Color Temperature | 8000 K | Lumens | 7600 lm |
| Enclosure Type | IP66 | Dimensions | 4 ft |
| Standards | NEC/CEC Certified | UPC | 781381460040 |
