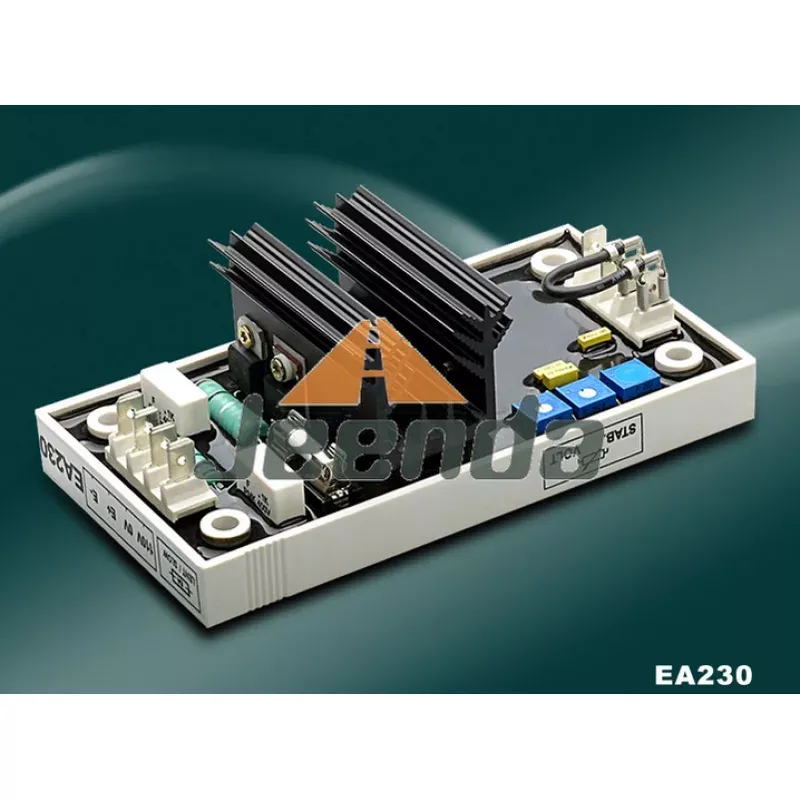

Automatic Voltage Regulator AVR EA230 for Kutai

Input

Voltage 120(90~140)VAC 1 phase 2 wireFrequency 45~65Hz

Output

Voltage Max. 100 Vdc @ 120 VAC inputCurrent Continuous 8A Intermittent 10A for 10 sec.Resistance Min. 15 ohm

Voltage Regulation

<1% (with 4% engine governing)

Build Up Voltage

Residual volts at AVR terminal> 5 VAC

External Volts Adjustment

5% with 5K ohm 1/2 watt trimmer

Unit Power Dissipation

Max. 6 watts

Thermal Drift

0.03% perC change in AVR ambient

EMI Suppression

Internal electromagnetic interference filtering

Under Frequency Protection

Knee point 47/57Hz (Adjustable)

Environment

Operation Temperature -40~60CStorage Temperature -40~85CRelative Humidity Max. 95%Vibration 1.5G @ 5~30Hz / 5.0G @ 30~500Hz

AVR Controls Functions

VOLT : Voltage AdjustmentSTAB : Stability AdjustmentU/F : To Set the U/F Knee Point (*U/F : Under Frequency Protection)

Shock

Withstands up to 20G in each X, Y, Z axes

Dimensions

140.0 x 75.0 x 51.0 mm
