Materials: Chassis parts are die-formed code gauge cold rolled steel, 1-7/8” deep, 4-5/8” channel width . Lamp holders: Mounted to flip-up socket bridge which can be flipped up from the horizontal (shipping position) to the vertical (installation) position with 4 screws. Ballast Cover:Snap-on type without fasteners. Screwdriver slots are to be provided in housing for easy removal of ballast cover. Finish: Chassis exterior phosphate undercoating, baked white polyester enamel. Electrical: Rapid start HPF, thermally protected class ”P” ballast C.B.M. certified by E.T.L. If K.O. is within 3” of ballast, use wire suitable for at least 90°.Labels: Listed by CSA.
Specifications

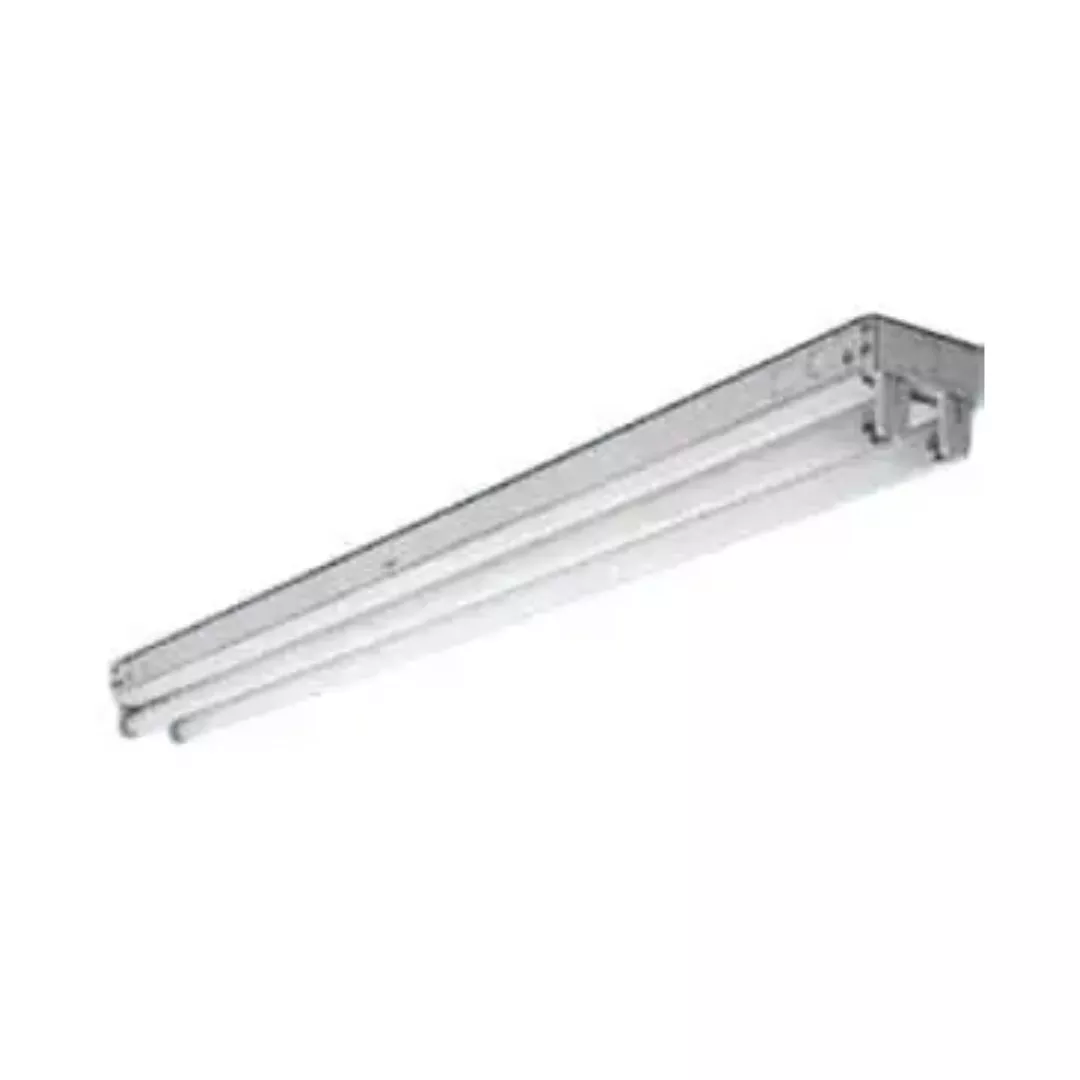

| Brand Name | Philips Lighting | Item Name | Fluorescent Strip Fixture |
| Voltage Rating | 120 V | Lamp Type | 26 mm T8 Fluorescent |
| Number of Lamps | 2 | Lamp Wattage | 32 W |
| Lamp Base | G13 Medium Bi-Pin | Ballast Type | Standard Electronic |
| Housing Material | Code-Gauge Cold Rolled Steel | Housing Finish | White |
| Dimensions | 73 mm H x 48 in L x 113 mm W | Includes | Control Unit |
| Standards | ETL Listed, CSA Certified | UPC | 622252095841 |
