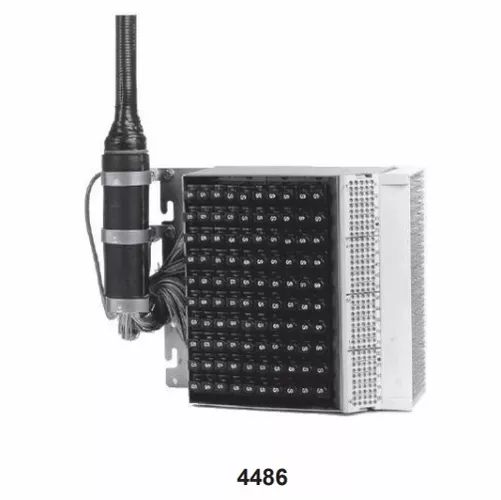

CIRCA 4486 (622001) 100PR NO STUB/WIRE WRAP

Product Description

---

CIRCA 4486 (622001) 100PR NO STUB/WIRE WRAPCIRCA TELECOM4486 (622001) 100PR NO STUB/WIRE WRAP 622001Model 4486Stock Code622001Pair Count100Cable DirectionN/AInputWire-WrapOutputWire-WrapDimensions (H x W x D)8.52 x 9.96 x 4.39 inchesWeight7lbs.4486 100 PAIR CENTRAL OFFICE CONNECTORThe 4486 Central Office Series is designed to protect incoming cable lines from overvoltage and current in Central Office and Private Automatic Branch Exchange environments. Easily mounted on central office frames with 8 inch centers.- 100 Pair maximum density space- saving unit- Accepts industry standard 5 Pin protection modules – Gold plated protector module sockets provide superiorelectrical contact to eliminate noise problems- User-friendly front facing cross connect field and test blocks- Large, well spaced fanning strips allows for clean jumper wiremanagement- Quick release system on rear cover allows for access topanel field for wire wrap input- Designed to exceed the requirements set forth in Underwriters Laboratory’s UL4978544.42.90.10
