Product Description

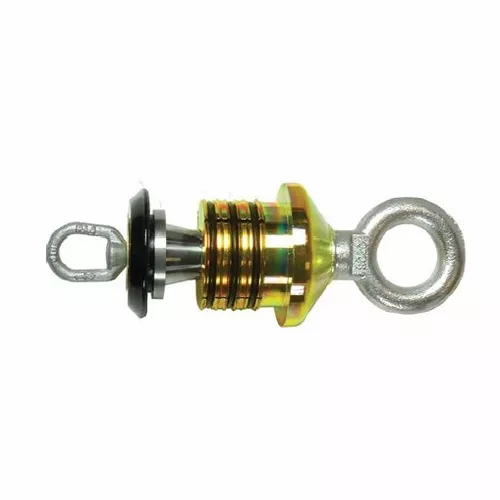

DCD 00617-063 Duct Puller 63mm DuctDCD 00617-063 Duct Puller 63mm DuctPart 00617-063DescriptionMade to order Metric Duct Puller63 mmNominal Duct Size63 mm3:1 Safe Working Load38.2 kNRear Eye Capacity (3:1 SWL)5.8 kNMinimum Inside Duct Diameter1.800 inch / 45.7 mmMaximum Inside Duct Diameter2.250 inch / 57.1 mmWeight1.5 kgDuct Sleeve Part No. 00626-063Metric Version00617 Duct Pullers are the same as the 00616 series, but are designed with jaws that allow sizing to metric duct sizes. These Pullers are made to order.The 00616/00617 series pullers were designed based on the older 00619 series pullers. After a customer request for a easier to handle puller we created a puller with a steel face plate instead of polyurethane. This design change has been made to satisfy customer request. As with the 00619 series, these pullers are designed with a larger expansion range in each unit as compared to the 00620 series.The puller comes standard with a duct plugger installed and complete with a rear pulling eye.Note: Safe Working Load is based on the duct yield strength to protect from creep failure.
