Product Description

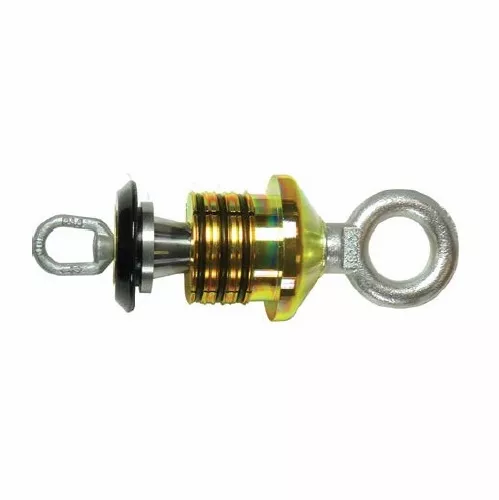

DCD 00617-090 Duct Puller 90mm DuctDCD 00617-090 Duct Puller 90mm DuctPart 00617-090DescriptionMade to order Metric Duct Puller90 mmNominal Duct Size90 mm3:1 Safe Working Load38.2 kNRear Eye Capacity (3:1 SWL)5.2 kNMinimum Inside Duct Diameter2.688 inch / 68.3 mmMaximum Inside Duct Diameter3.125 inch / 79.4 mmWeight2.3 kgDuct Sleeve Part No. 00626-090Metric Version00617 Duct Pullers are the same as the 00616 series, but are designed with jaws that allow sizing to metric duct sizes. These Pullers are made to order.The 00616/00617 series pullers were designed based on the older 00619 series pullers. After a customer request for a easier to handle puller we created a puller with a steel face plate instead of polyurethane. This design change has been made to satisfy customer request. As with the 00619 series, these pullers are designed with a larger expansion range in each unit as compared to the 00620 series.The puller comes standard with a duct plugger installed and complete with a rear pulling eye.Note: Safe Working Load is based on the duct yield strength to protect from creep failure.
