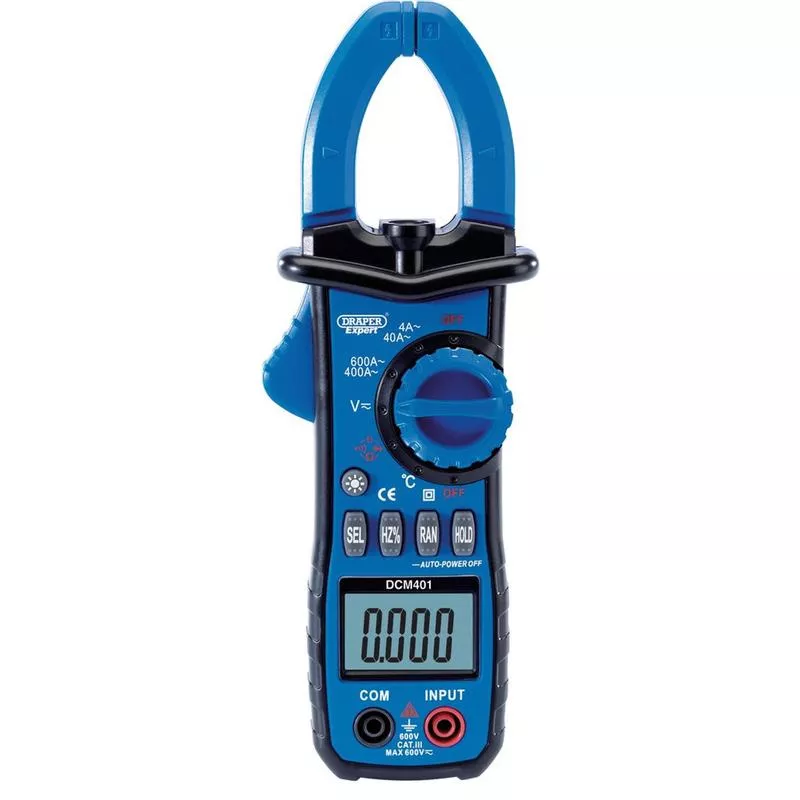

The Draper 41911 Auto-Ranging Digital Clamp Meter. Expert Quality, auto and manual ranging clamp meter capable of voltage, current, resistance, diode, continuity, capacitance, frequency, duty cycle and temperature testing. Maximum jaw – opening diameter of 36mm, backlit LCD screen, auto power off and a useful inspection light. Supplied with test leads, temp probe, case and 3 x AAA batteries.
Key Features of The Draper 41911 Auto-Ranging Digital Clamp Meter:
- Auto and manual ranging clamp meter capable of voltage, current, resistance, diode, continuity, capacitance, frequency, duty cycle and temperature testing.
- Maximum jaw-opening diameter of 36mm
- Backlit LCD screen
- Auto power off and a useful inspection light
- Supplied with test leads, temp probe, case and 3 x AAA batteries
- Elastomer bumpers and metal pipes protect against rough handling
- AUX-IN jack for connecting to external audio source (Connecting cable is not included.)
- Digital tuner
Technical Specifications of the The Draper 41911 Auto-Ranging Digital Clamp Meter:
AC Amps4A/40A/400A/600A
AC Current – 4A/40A/400A/600A
AC Voltage – 400mV/4V/40V/400V/600V
Automatic Power OffYes
Battery – 3 x AAA (supplied)
Capacitance – 5nF/50nF/500nF/5F/50F/200F
DC CurrentN/A
DC Voltage – 400mV/4V/40V/400V/600V
Diode on/off TestingYes
Dimensions – 230mm x 156mm x 62mm
Frequency – 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz
Resistance – 400/4k/40k/400k/4M/40M
Symbol Unit Data HoldYes
Temperature Range – -20C – 1000C
Weight – 488g (approx.)
Buy Draper 41911 Digital Clamp Meter (Auto-Ranging) online now from DW Toolshop, one of the UK and Irelands largest tool shops.
