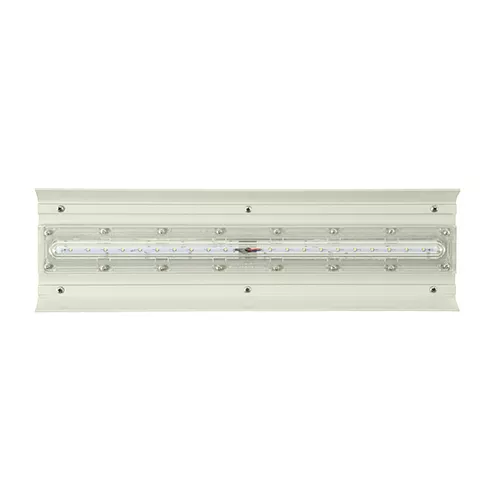

The Viamaster LED luminaire is ideal for use in ATEX and IECEx Governed harsh and hazardous locations. It features a contemporary, low profile design that is suitable for tight spaces. It is lightweight for easy handling and is designed to simplify installation and maintenance. A terminal block with ample wiring room simplifies electrical connections. Its industry leading thermal management ensures safe, reliable operation over a wide temperature range. Field replaceable components can be accessed by swinging away the hinged cover, secured with captive screws. Viamaster LED is available in a full range of lumen outputs, with light distribution equivalent to fluorescent luminaires.
Specifications
| Brand Name | Appleton | Sub Brand | Viamaster™ |
| Item Name | LED Luminaire | Type | Linear |
| Voltage Rating | 120 – 277 VAC at 50/60 Hz | Lamp Type | LED |
| Housing Finish | Gray Polyester | Application | Oil Refineries, Petrochemical Facilities, Pulp and Paper Mills, Food Processing Plants, Waste and Sewer Treatment, Underground Tunnels |
| Amperage Rating | 0.37 A at 120 V, 0.17 A at 277 V | Average Life | 60000 hr |
| Color Temperature | 5650 K | Color Rendering Index (CRI) | 70 |
| Lens Type | Clear Polycarbonate | Lumens | 4400 lm |
| Housing Material | Copperfree Aluminum | Standards | UL Listed: UL 1598, UL 8750, UL 844, UL1598A, UL50E, cCSAus Certified: 065182. cULus E10444, DLC Listed |
| UPC | 781381426633 |
