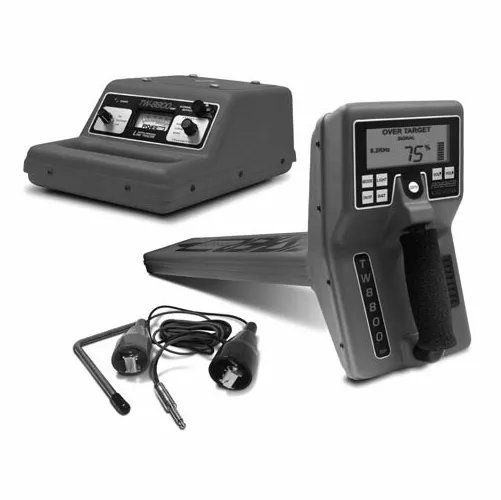

FISHER TW8800 INDUSTRIAL METAL DETECTOR -PIPE AND CABLE LOCATOR

Product Description

---

FISHER TW8800 INDUSTRIAL METAL DETECTOR -PIPE AND CABLE LOCATOR NEWFisher TW-8800 Digital Line TracerTW-8800 RECEIVERDepth Accuracy: +1 inch per foot in nominal conditions Readout Units: Inches or cm (factory preset) Left/Right Guidance: Audio: continuous tone=Left, pulsed tone=Right. VCO (varying pitch) output for easy over target location. Visual: Left/Right/Over Target messages Signal Strength: Digital Numeric Readout (0-99%) & Bar Graph Sensitivity Adjust: Automatic LCD Backlight: Included Battery Test: Automatic Low Battery alert Push button readout Battery Life: 80 Hours Battery Type: 6 – “C” cells Weight: 6 lbs. (2.7 kg) Operating Temp: -4 to +1400F (-200 to +600C) Dimensions: 6 1/2” x 11” x 32 1/2” (16.5 x 27.9 x 82.6 cm) TW-8800 TRANSMITTEROutput Frequencies: 82 kHz, 8.2 kHz, 820 Hz Output Power (nominal): 82 kHz: .7 Watts, 8.2 kHz: 7.0 Watts, 820 Hz: 7.0 Watts Battery Test: Yes Battery Life: 80 Hrs. at 82kHz Battery Type: 2 – 6 Volt lantern batteries Weight: 7.8 lbs. (3.5 kg) Dimensions: 7 3/4” x 12” x 6” (19.7 x 30.5 x 15.2 cm)OPTIONAL ACCESSORIES for both TW-7700 & TW-8800Headphones: Volume adjusts separately for each ear. Coupling Clamp: Useful for in-service and electrical power line tracing when a metal-to-metal hookup is not possible Sonde: Insertable transmitter
