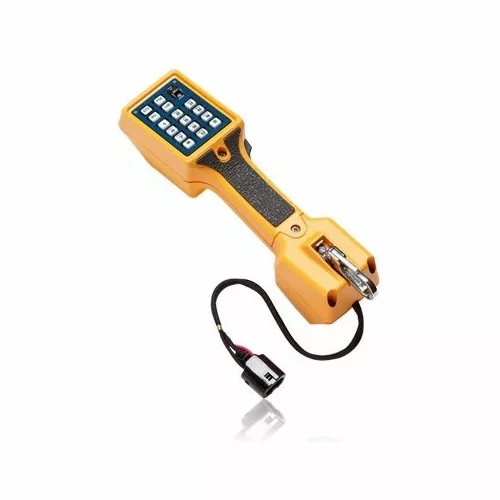

FLUKE TS22 1-WAY SPEAKERPHONE BUTT SET W/346A 22800-004

Product Description

---

FLUKE TS22 1-WAY SPEAKERPHONE BUTT SET W/346A 22800-004 NEWFLUKE TS22 1-WAY SPEAKERPHONE BUTT SET W/346A 22800-004 NEWPart 22800004 TS22 test set with 346A plugThe TS22 Test Set’s unique built-in one-way amplified speaker provides three audio levels for hands-free listening and use with automated voice response systems. Multiple memories enable storage of nine 18 digit telephone numbers in repertory dialer (speed dialing) for easy access to test boards, the central office and other frequently called numbers. The last number redial feature eliminates the need to re-key your last entry. The TS22 Test Set offers an unbeatable combination of reliability, durability and expanded utility.Dimensions 10.25 in x 2.69 in x 3.38 in (26 cm x 6.83 cm x 8.57 cm)Weight21 oz (.595 kg)ElectricalLoop Limit2 kO maximum at 48 VDC (nominal 20 mA minimum loop current)DC Resistance (Talk Mode)300 O typicalMonitor ImpedanceTS225 kO nominal at 1 kHzRotary Dial Output Pulsing Rate10 pps ±5 ppsPercent Break61 % ± 2 %Interdigit Interval1000 ms typicalLeakage During Break>50 kODTMF OutputTone±1% maximumFrequency Error Tone Level-3 dBm combined (typical)High versus Low Tone Difference4 dB maximumMonitor Amplifier9 V battery; provides 25 hoursPower Sourcecontinuous use, typicalSpeaker Levels for TS22Low, medium, high and offAutomatic Power Shut OffAfter 5 min. of no audio signalEnvironmentalTemperature Operating:29 °F to 140 °F (-34 °C to 60 °C)Storage-40 °F to 150 °F (-40°C to 66 °C)AltitudeTo 10,000 feet (3,000 meters)Relative Humidity5 % to 95 %* The TS22 Series Test Set contains an embedded 3-volt lithium battery. The 9-volt battery in the Test Set should be changed when low, or once a year if not in use, to prevent the 3-volt battery from draining. A 3-volt battery that drains after its 42-month warranty will need to be replaced by an authorized service facility at a charge to you.
