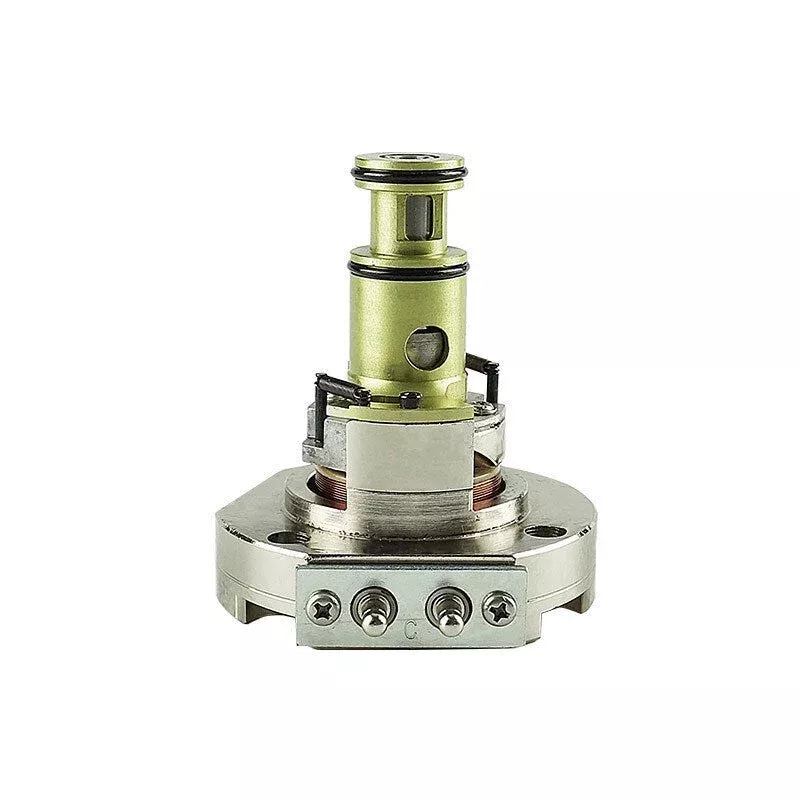

Actuator 3408326
TheCumminsElectronicFuelControlActuator 3408326is used primarily for PTfuelsystems on Non Certified COMMON 14 liter 855 engines.
| Model | 3408324 | 3408326 | 3408328 | 3408329 |
| Type | Normal close | Normal close | Normal close | Normal open |
| Flow | Small flow | Small flow | Big flow | Big flow |
| Response time | 20ms | |||
| NM | 8kg.cm | |||
| Frequency | 0.1hz | |||
| Diesel engine type | 0-500KW, 24VDC control system | Over 500KW, 24VDC control system |
The power range is from 300KW -800KW and above.
Type: closed ,big flow capacitor Nm:8kg.cmreaction time.20msfrequency fluctuation:0.10hzuse for0-500kw.DC 24V control systerm.closed type diesel generator .
