Product Description

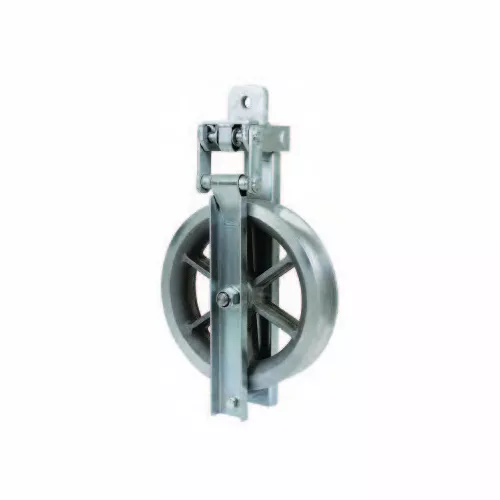

GENERAL MACHINE PRODUCTS 70621 BLOCK STARTER ADSS 15.1″ ROOT DIAMETER NEWLARGE DIAMETER ADSS STARTER BLOCKSUsed at the feed and exit of an ADSS installationThe large diameter profiled groove helps protect the cable.The swivel oval eye, cable gate and cable retaining pin make it easy to useThe sheave rides on ball bearings. Available in 2 sizessubhead_spacerOrdering InformationP/NOutside DiameterGroove WidthRoot DiameterWorking Load LimitWeight7062118.5 in. (470 mm)2.17 in. (55 mm)15.16 in. (385 mm)5291 lbs. (2400 kg)30.8 lbs. (14 kg)7061426.06 in. (662 mm)2.36 in. (60 mm)23.62 in. (600 mm)5291 lbs (2400 kg)33.1 lbs. (15 kg)
