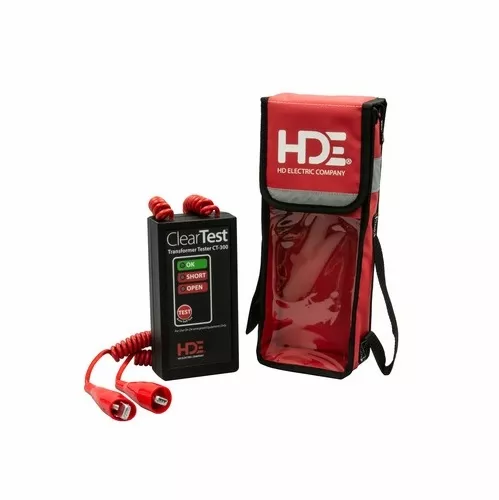

GREENLEECT-300 CLEARTEST« TRANSFORMER TESTER 52087332 / 783310556961

Product Description

---

GREENLEECT-300 CLEARTEST TRANSFORMER TESTER 52087332 / 783310556961GREENLEECT-300 CLEARTEST TRANSFORMER TESTER 52087332 / 783310556961ClearTest® Transformer TesterCat : CT-300UPC : 783310556961Quickly tests deenergized power distribution transformersBriefly energizes the transformer and takes a snapshot of the condition by measuring the voltage, current and power factor of the test signalTests overhead, pad-mount and distribution transformersAudible alarm confirms successful testImprove SAIDI statistics by quickly testing and getting the transformer back in serviceAuto self-test performed with every testCompact, lightweight and easy-to-useSpecificationsSub BrandHDETypeTransformer TesterModelClearTestTemperature Range-20°F to +140°F (-29°C to +60°C)Output500VDC or 5,000VDC nominalEnclosureABS UL 94-HBMountingMagnetSize7.8″L x 4″W x 2.3″H (19.5 cm x 10.1 cm x 5.9 xm)Supply Current1,000µA on 500VDC range; 100µA on 5,000VDC range; 2,000µA maxIncludedCT-300 Tester, B-9 Carrying Bag
