Product Description

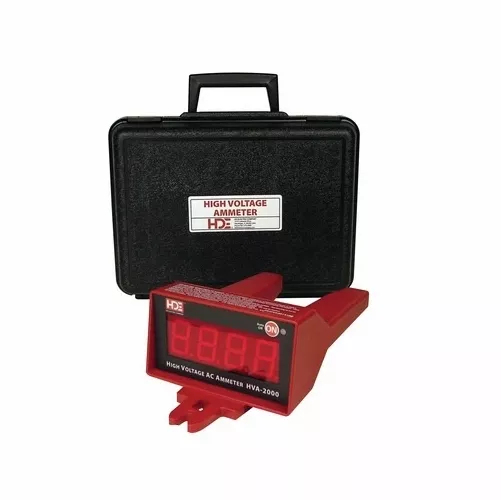

GREENLEEHVA-2000H DIGITAL AMMETER 2000A, Base 2 52087338 / 783310557043GREENLEEHVA-2000H DIGITAL AMMETER 2000A, Base 2 52087338 / 783310557043High Voltage Ammeter 2000A with Plastic Carrying CaseCat : HVA-2000HUPC : 783310557043Measures AC current from 1 to 2000 Amps on system voltages up to 500kV line-to-groundStores the last 4 readingsDual measurement modes, peak hold and real timeTakes spot-load checks with easeVerifies phases are balancedVersatile for overhead and underground applicationsCompact, lightweight designSpecificationsSub BrandHDETypeAmmeterModelHVA-2000Voltage Rating0 – 500kV line-to-groundAmperage Rating1 -2000AAccuracy50-60Hz – 1-10A – 1% +/-2 counts, 11-100A – 1% +/-3 counts, 101-500A- 1% +/-6 counts, 501-2000A- 1% +/-8. 252-49Hz and 61-500Hz – 1-10A – 2% +/-3 counts, 11-100A-2% +/-4 counts, 101-500A-2% +/-6 counts, 501-2000A – 2% +/-8 countsDisplayLED displayOperating Temperature-20°F to +140°F (-29°C to +60°C)Dimensions4″H x 6.6″W x 11.5″LFrequency Rating25 – 500HzIncludedHVA-2000 Ammeter, CS-HVA Carrying Case
