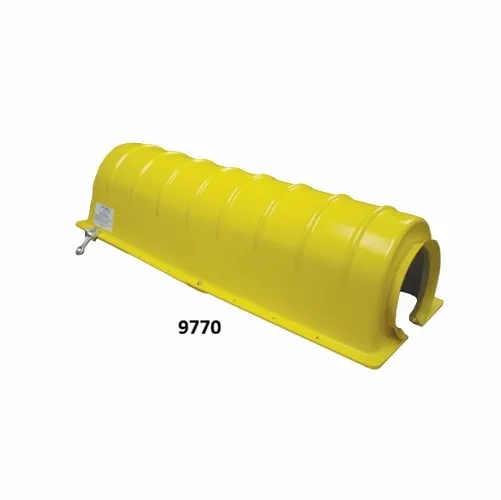

HASTINGS 977035 KV Insulator Hood – Double Pin

Product Description

---

HASTINGS 977035 KV Insulator Hood – Double PinHASTINGS 977035 KV Insulator Hood – Double PinHASTINGS 977035 KV Insulator Hood – Double Pin – Weight7.5 lbs.LINE GUARDS AND INSULATOR HOODS- 35 KV, 46 KV, AND 69 KV- Designed for easy installation and removal- Line guards are 4′ 6″ long- Installation – Guards and hoods are equipped with eye and can be installed with all shotgun sticks- Guards with 4′ fiberglass installing stick are also an option- Eyes are adjustable to allow installation of guards at angles- Interlocking male and female ends allow as many guards as needed to be installed on conductors- Wire Range – Guards are designed to accept all sizes up to and including 1,272 MCM 45/7 ACSR- Brush contact onlyDESCRIPTION:35 KV INSULATED HOOD – DOUBLE PINADJUSTABLE IN 3 LENGTHS – 27″ – 32″ – 37″VOLTAGE RATING :- 35 KV – IF USED WITH 6010 OR 6011 GUARDS- 46 KV – IF USED WITH 6012 OR 6013 GUARDS- 69 KV – IF USED WITH 12000 OR 12001 GUARDSWEIGHT :7. 5LBS
