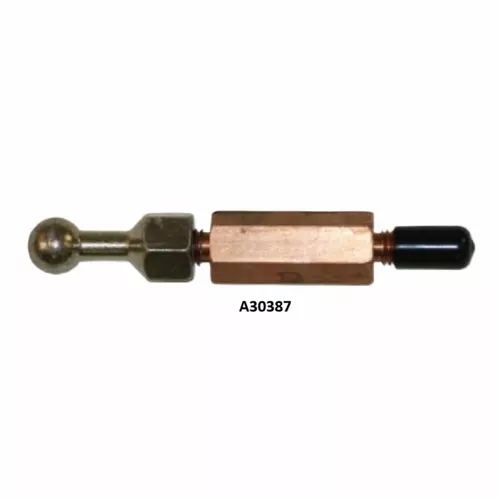

HASTINGS A30387 Test Electrode

Product Description

---

HASTINGS A30387 Test ElectrodeHASTINGS A30387 Test ElectrodeHASTINGS A30387 Test Electrode for 20 mm Ball Socket Design Ground Clamp Assembly- Weight0.8 lb.TEST ELECTRODE FOR 20 mm BALL SOCKET DESIGN GROUND CLAMP ASSEMBLY- This tester is designed to test in-service grounding and jumpering cable assemblies- Regular periodic use will ensure that jumper assemblies perform as designed for personnel safety- Tester is completely self contained, portable and sets up in seconds. Any standard 120 volt grounded outlet will provide power to the tester.- A reference chart is provided for 2, 1/0, 2/0, and 4/0 Str. Cu. cables of specific lengths to determine correct test values- A built in digital meter allows the operator to easily input the correct voltage specified on the reference chart for various sizes and lengths of cable- A built in digital ammeter tells the operator if the assembly is in good working condition- Test electrodes are available to fit a variety of grounding equipment including elbows, grounding bushings, and ball socket clamps- Maximum voltage output is limited to protect the operator- Pressure sensitive inspection labels are available to tag cables after testingSPECIFICATIONS: TEST ELECTRODE FOR 20 mm BALL SOCKET DESIGN GROUND CLAMP ASSEMBLYWEIGHT: 0.8LB
