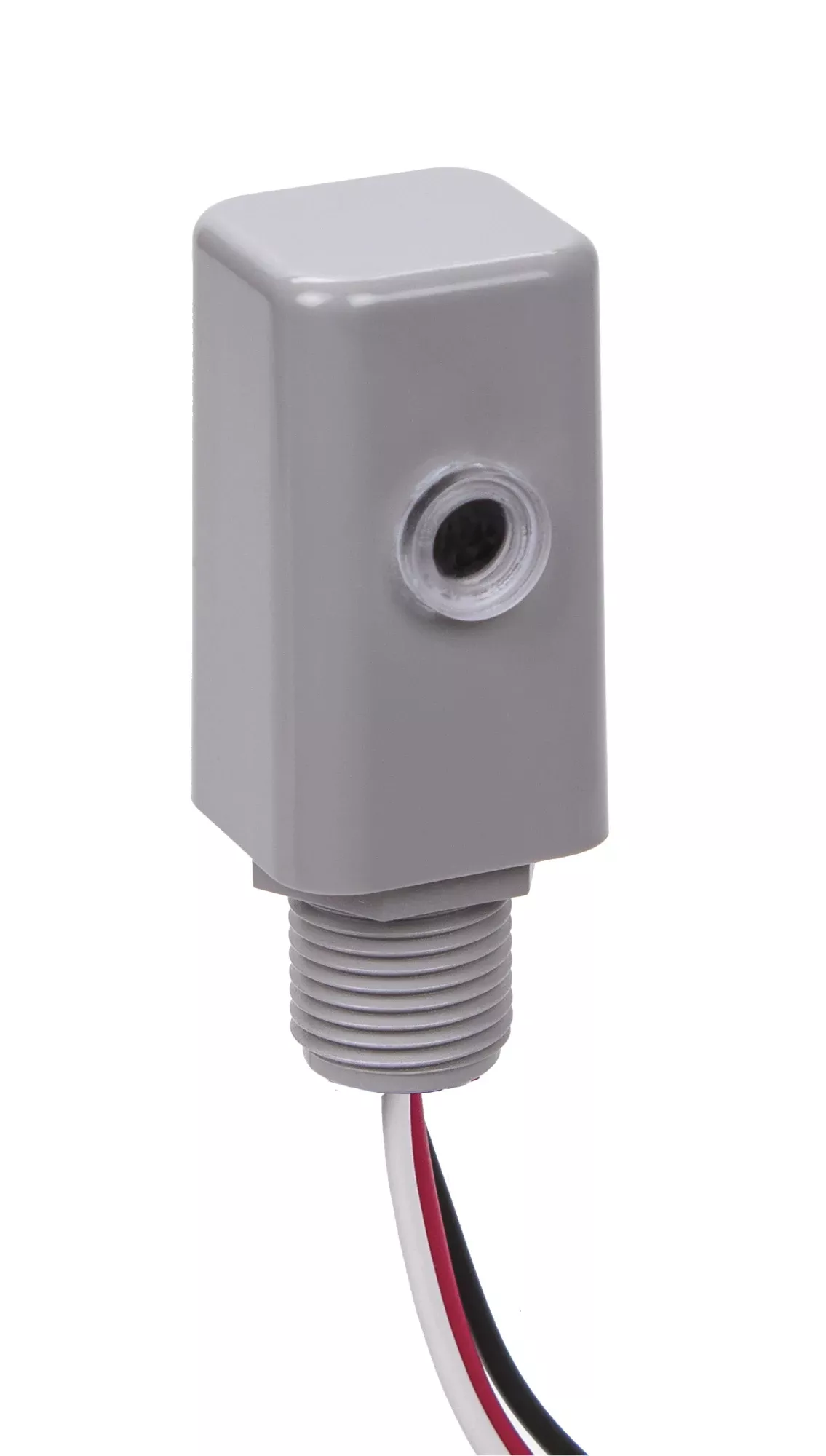

NIGHTFOX electronic photocontrols permanently install on outdoor electrical boxes or outdoor lighting fixtures. Ideal for LED fixtures with long-life expectations. ½”-14 NPSM threaded stem fits standard outlet boxes and wall packs with a minimum installation hole size of 7/8” diameter. Come with 9″ wire leads.
Non-drift silicon light sensor with IR filter
DC relay with zero-crossing circuitry for extended life
Conformal coated PCB
15-year design life
Exceeds 10,000 ON/OFF switching cycles
Fail ON mode
Ideal for single or multifixture HID and LED installations
220 J MOV surge protection element
1/2″-14 NPSM threaded stem fits standard outlet boxes and wall packs for a minimum installation hole size of 7/8 inch diameter
18 AWG wire leads
Specifications
Brand Name
NA
Item Name
Electronic Photocontrol
Type
Home Improvement & Commercial Supplies – Electrical & Lighting Sensor, Switches, Fuses and Gauges
Voltage Rating
347 V
Frequency Rating
50/60 Hz
Sensor Type
Electronic photocontrol
Material
Polycarbonate
Color
Gray
Finish
Plastic
Dimensions
31.8 x 33.3 x 57.2 mm
Mounting
Stem Mount
Temperature Rating
70.0 degrees C
Warranty
8 YR
For Use With
Lighting, pathways
Standards
Ansi C136.24
Application
Outdoor Lighting Control
UPC
078275152373
