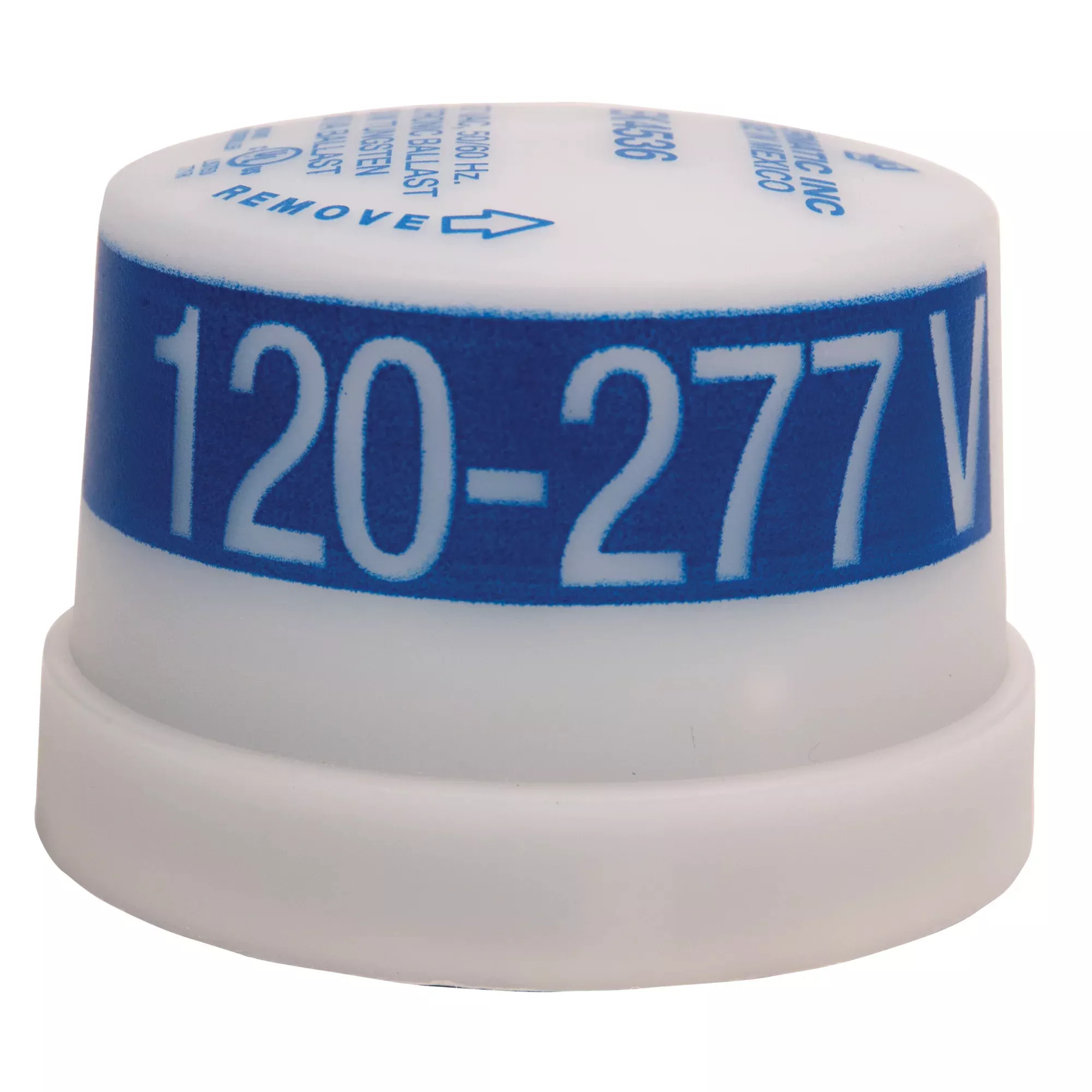

Dusk-to-dawn roadway, area and parking lot lighting. Areas with variable sky conditions. Floodlights and security lighting. Ideal for LED fixtures totaling 1650 W @ 277 V AC. Non-drifting silicon light sensor IR filtered for human eye response. Zero-cross technology helps device withstand severe in-rush current and extend relay life. Exceeds 10000 ON/OFF operations at full load, to meet life expectancy of LED fixtures. Conformally coated PCB for extended life. All components meet 15-year life requirements. ANSI C136.10-2010 compliant CSA certified to both U.S. (UL773)Canadian (TIL A15) safety standards.
Non-drift silicon light sensor with IR filter
DC relay with zero-crossing circuitry for extended life
All components meet 15-year life expectancy
Conformal coated PCB
Exceeds 10,000 ON/OFF switching cycles
Ideal for single or multifixture HID and LED installations(up to 1,650 W @ 277 VAC)
510 J MOV surge protection
High precision, microprocessor-controlled zero-cross switching, individually calibrated to extend the life of 20 A relay independent of load being switched
Specifications
Brand Name
Intermatic
Item Name
Photocontrol with Time Delay Function
Type
Cylinder Plain, Select Grade
Voltage Rating
277 V
Lamp Type
High Pressure Gas Discharge
Ballast Load
1800 VA
Sensor Type
Electronic photocontrol
Mounting
Locking Type
Amperage Rating
6000 mA
Frequency Rating
60 Hz
Timing Range
2 to 5 s
Material
Polycarbonate
Color
White With Blue Band
Finish
Plastic
Dimensions
77.775 x 85.725 x 69.9 mm
Temperature Rating
-40 to 70 °C
For Use With
Lighting, pathways
Standards
ANSI C136.24 Compliant, CSA Certified to Canadian, Title CA 20 Listed, RoHS Compliant
Application
Outdoor Lighting Control
UPC
078275130173
