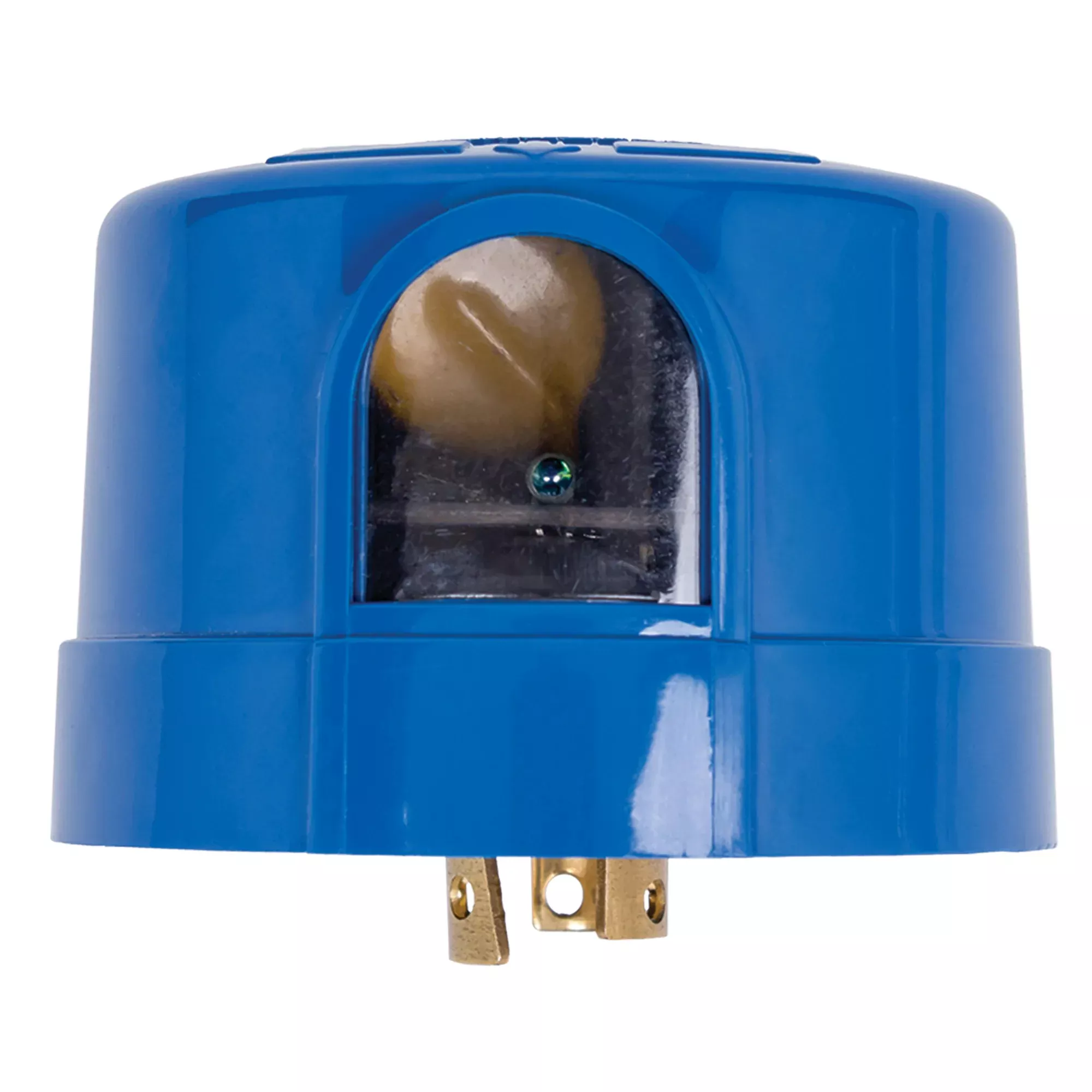

Electronic photo controls. 2 A electronic ballast. 1800 VA magnetic ballast. 1000 W tungsten. 2500 VAC dielectric strength. Locking type mounting.
Non-drift silicon light sensor with IR filter
All components meet 10-year life expectancy
Exceeds 5,000 ON/OFF switching cycles
Ideal for single HID and LED fixtures (up to 550 W @ 277 VAC)
Power-up ON delay (45-60 sec) for easy installation verification and troubleshooting
510 J MOV surge protection
Specifications
Brand Name
Intermatic
Item Name
Photocontrol with Time Delay Function
Type
Cylinder Plain, Standard
Lamp Type
High Pressure Gas Discharge
Mounting
Twistlock Mount
Amperage Rating
2000 mA
Frequency Rating
60 Hz
Timing Range
2 to 5 s
Material
Plastic
Color
Blue
Dimensions
55.9816 mm H x 80.772 mm dia
Temperature Rating
-40 to 70 °C
Standards
ANSI C136.10, UL Recognized, cULus Listed, CAS Approval, Title CA 20 Listed, RoHS Compliant
Application
Outdoor Lighting Control
UPC
078275142961
