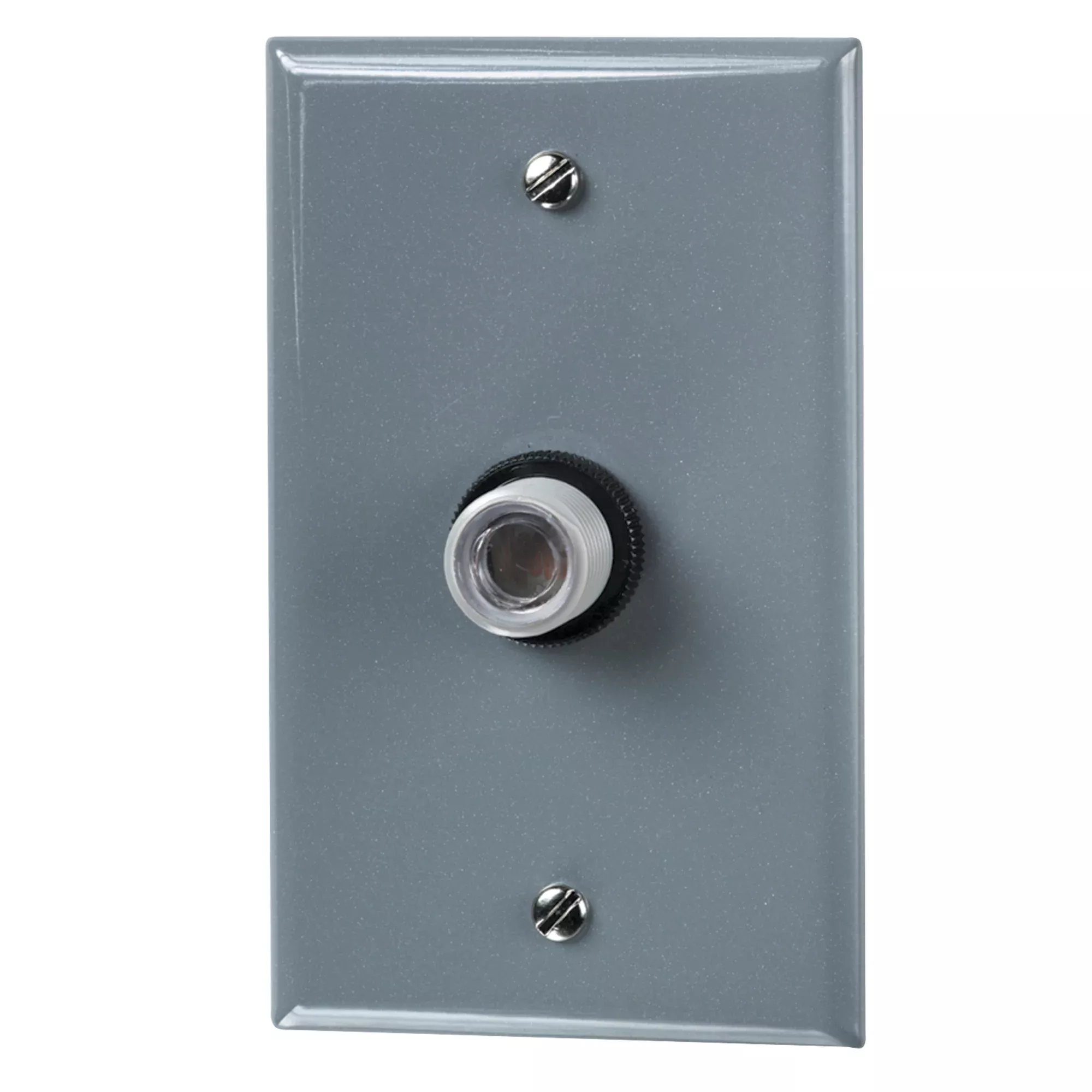

K4000 Series fixed position mounting photo control is thermal-type photo control that fit into a standard outlet box, post lamp, or wall pack. The photo controls provide dusk-to-dawn lighting control along with a delay action, which eliminates loads switching OFF due to car headlights and lightning. The thermal-type controls feature a cadmium sulfide photocell and a sonic-welded polycarbonate case and lens to seal out moisture. The design utilizes a dual temperature compensating bimetal and composite resistor for reliable long life operation over ambient temperature extremes. Cadmium sulfide photocell. Sonic-welded polycarbonate housing and lens to seal out moisture. Delay action eliminates load switching OFF due to car head lights and lightning. 9 inch leads. Includes a weatherproof wall plate with a neoprene gasket. Most models equipped with a 5/8 – 18 inch threaded side mounting, locking nut and washer gasket.
Mechanical bimetal switch with cadmium sulfide photocell
Delay feature prevents unwanted ON/OFF switching
Fail ON Mode
Includes weatherproof wall plate and neoprene gasket
Specifications
Brand Name
Intermatic
Item Name
Photocontrol
Type
Cuboid, Thermal, Light/Dark
Voltage Rating
120 V
Ballast Load
8.3 A 1000 VA
Sensor Type
Thermal photocontrol
Mounting
Fixed
Amperage Rating
15000 mA
Frequency Rating
50/60 Hz
Power Rating
1800 W
Terminal Connection
Cable
Material
Plastic
Color
Gray
Finish
Plastic
Dimensions
70 mm W x 114 mm H
Enclosure Type
NEMA 3R
Temperature Rating
-40 to 70 °C
For Use With
Lighting, pathways
Includes
Wallplate
Standards
CSA, CAS Approval, C/US Approval, Title CA 20 Listed, California Title 24 Compliant
Application
Outdoor Lighting Control
UPC
078275002036
