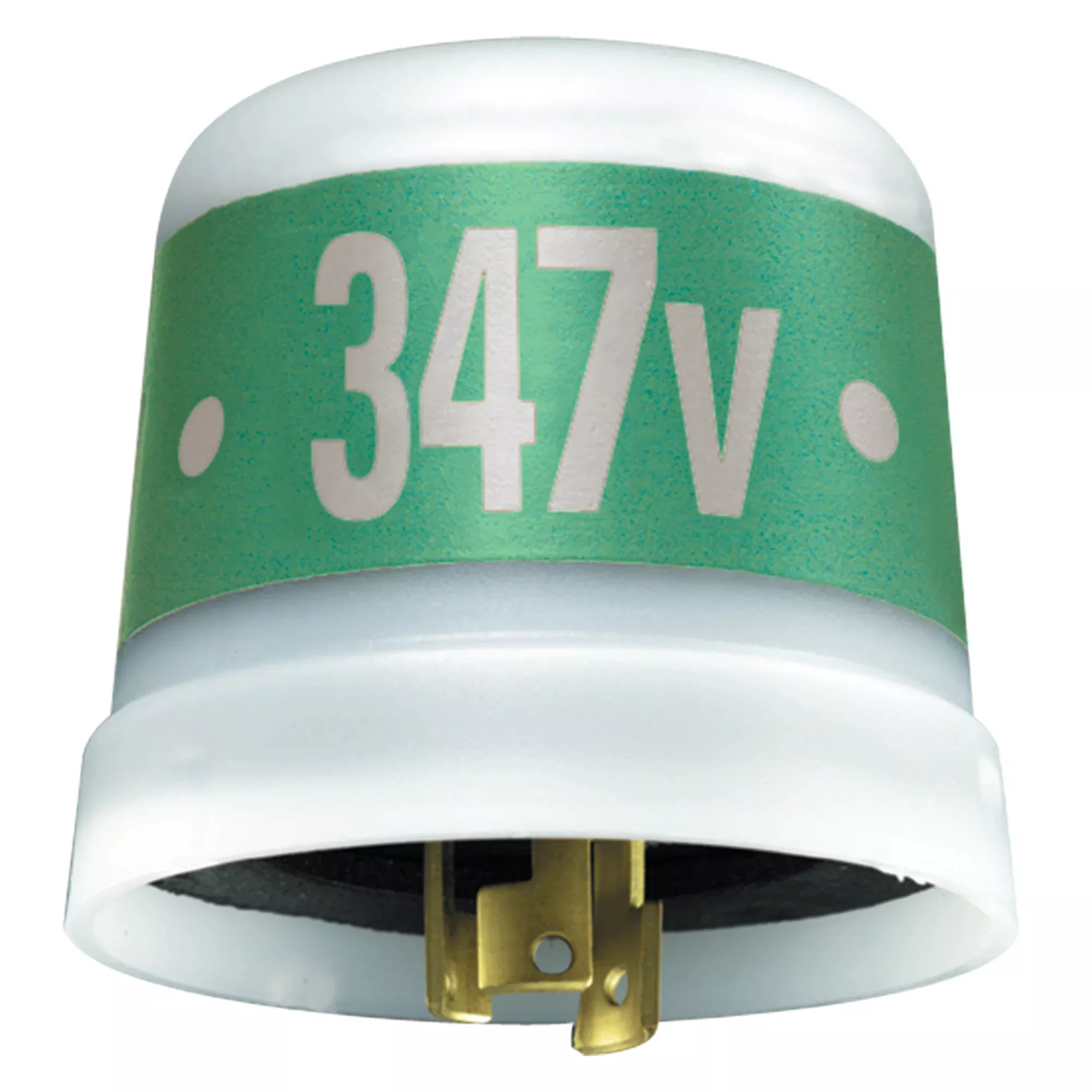

LC4500 Series photo control feature low cost locking-type mounting and thermal-type controls for street lighting and other applications requiring a twist and lock type plug connection. Thermal-type photo controls provide dusk-to-dawn lighting control and a delay action, which eliminates loads switching OFF due to car headlights and lightning. The thermal-type controls feature a cadmium sulfide photocell and polypropylene case to seal out moisture. The design utilizes a dual temperature compensating bimetal and composite resistor for reliable long life operation over ambient temperature extremes. Polypropylene housing with UV protection.
Mechanical bimetal switch with Cadmium Sulfide photocell
Integral high impact thermoplastic housing
Locking type plug for quick installation and changeover
Delay feature prevents unwanted OFF switching
Complies with ANSI C136.10 standard
Tested to 3,650 ON/OFF cycles
Specifications
Brand Name
Intermatic
Item Name
Photocontrol
Type
Cylinder Plain, Light/Dark
Voltage Rating
347 VAC
Mounting
Twistlock Mount
Amperage Rating
15000 mA
Frequency Rating
50/60 Hz
Terminal Connection
Axial Plug
Material
Plastic
Color
White With Green Band
Dimensions
70 mm H x 76 mm dia
Temperature Rating
-40 to 70 °C
Standards
Title CA 20 Listed, California Title 24 Compliant
Application
Outdoor Lighting Control
UPC
614573091701
