Home » Shop » hot sale » Jet 200278 – (JDP-17F) 17″ 1 HP 16 Speed Floor Drill Press

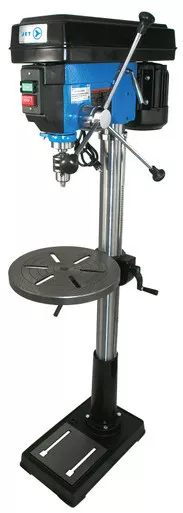

Jet 200278 – (JDP-17F) 17″ 1 HP 16 Speed Floor Drill Press

Original price was: $981.59.Current price is: $543.87.

Sale!
SKU: JET200278 Category:
Share
  • Powerful 1 horse power motor
  • Full 17″ swing for easy drilling of larger work pieces
  • 16 speed capability allows for a broad assortment of drilling applications
  • Safety on/off switch with removable lock key
  • Fully hinged belt and pulley cover and quick adjust motor mount permit fast changes of spindle speed
  • Worktable with quick release clamp rotates and tilts to 45° right and left
  • Slots in worktable and base permit easy clamping of the work piece
  • Positive depth setting mechanism uses a threaded rod and two lock nuts for accuracy
  • Built-in work lamp with separate switch (bulb not included) Standard Equipment: Drill chuck and key
  • Swing : 17″
  • Type: Floor Model
  • Chuck Size : 5/8″
  • Drilling Capacity : 5/8″
  • Spindle Travel : 3-1/4″
  • Spindle Distance to Base : 48-3/8″
  • Max. Spindle Distance to Table : 28″
  • Table Diameter : 13-3/4″
  • Table Tilt (Right and Left) : 0 – 45°
  • Spindle Taper : MT2
  • Column Diameter : 3-1/8″
  • Number of Spindle Speeds : 16
  • Range of Spindle Speeds : 220 – 3,380 RPM
  • Overall Height : 64-1/2″
  • Base Size : 12″ x 19-3/4″
  • Motor : 1HP, 1 ph, 115/230 V, 8.5/4.25 A, Pre-wired 115 V
