Home » Shop » hot sale » Jet 408802 – (AFRLCI38) 2 PC Air Filter, Regulator and Lubricator 3/8″ NPT – Intermediate

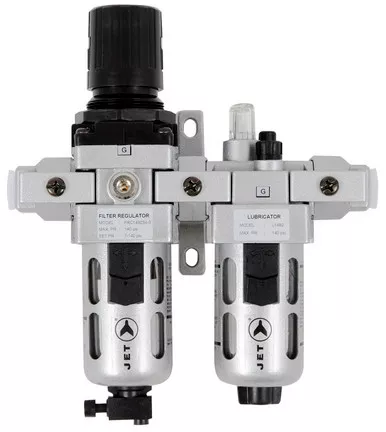

Jet 408802 – (AFRLCI38) 2 PC Air Filter, Regulator and Lubricator 3/8″ NPT – Intermediate

Original price was: $187.99.Current price is: $150.34.

Sale!
SKU: JET408802 Category:
Share
  • Space saving 2 piece modular filter, regulator combination and lubricator is by far the most popular air preparation unit
  • A combination of 2 Modular units – Filter, Regulator and Lubricator, connected together using a spacer block with a built-in wall mounting bracket and piping adaptors
  • Air filter is designed to eliminate dust, water and other impurities from reaching air tool, extending tool life
  • Air regulator governs air flow to desired PSI air pressure
  • Lubricator device is indispensable for air generated equipment, atomizing lubricant into the compressed air allowing it to reach and lubricate the internal parts of the air tool
  • Maximum Working Air Pressure: 145 PSI
  • Ambient Temperature: 0-60°C (32-140°F)
  • Modular Mounting
  • Vertical Mounting
  • Wetted Components: Aluminum, bronze, brass, steel, acetal, polycarbonate, stainless steel and nitrile
  • Inlet Pressure 105 PSI (7 BAR). Set Pressure 90 PSI (6 BAR). Pressure Drop 17 PSI (1 BAR)
  • Max. Flow : 44 cfm (1,250 LPM)
  • Port Size : 3/8″
  • Pressure Gauge Port Size : 1/8″
  • Bowl Size (Filter) : 1.08 oz (32 ml)
  • Bowl Size (Lubricator) : 1.93 oz (57 ml)
  • Height : 8.66″ (220 mm)
  • Width : 7.17″ (182 mm)
