- Industrial construction Aluminum die cast body (9 times safer than a plastic body). Allows use at higher temperatures and better tightening of piping without stripping the threads
- Used to maintain steady outlet pressure unaffected by variations in inlet pressure
- Works on a Diaphragm operated, relieving type mechanism with pressure compensated by balanced poppet and can be installed in any position
- Regulator with Non Raising “Press to Lock” adjusting knob
- Maximum Working Air Pressure: 220 PSI
- Ambient Temperature: 0-60°C (32-140°F)
- Modular Mounting
- Panel Mounting
- Conforms to ISO 6953-1
- Wetted Components: Aluminum, brass, steel, acetal, stainless steel and nitrile
- Inlet pressure 105 PSI (7 BAR), supply pressure 90 PSI (6 BAR) and pressure drop 17 PSI (1 BAR)
- Max. Flow : 21 cfm (600 LPM)
- Port Size : 1/4″
- Pressure Gauge Port Size : 1/8″
- Height : 3.19″ (81 mm)
- Width : 1.57″ (40mm)

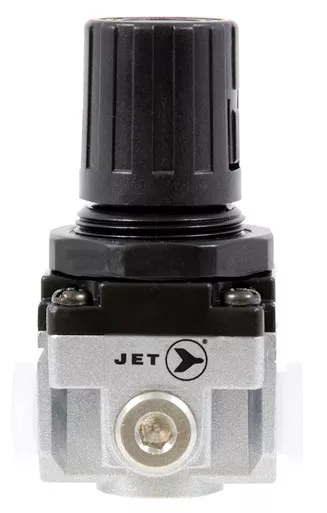

Jet 408818 – (ARM14) Air Regulator 1/4″ NPT – Miniature
Original price was: $34.39.$27.48Current price is: $27.48.
