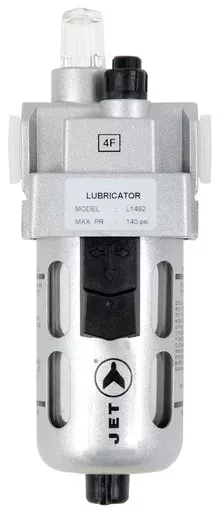

Jet 408836 – (ALI38) Air Lubricator 3/8″ NPT – Intermediate

Original price was: $66.39.Current price is: $50.40.

Sale!
SKU: JET408836 Category:
Share
  • Used to feed lubricants to pneumatic equipment. These maintain a constant oil-to-air density over a wide range of flow
  • Lubricators are Fog/ Micro Mist type, up to 50′ pipe runs
  • Die Cast Aluminum Head, polycarbonate bowl with a steel bowl guard
  • The head is fitted with Oil drop indicator, Oil drop controller and Oil filling plug
  • Polycarbonate bowl with threaded steel bowl guard
  • Sintered Bronze Filtering element
  • Maximum Working Air Pressure: 145 PSI
  • Ambient Temperature: 0-60°C (32-140°F)
  • Modular Mounting
  • Vertical Mounting
  • Conforms to ISO 6301-1
  • Wetted Components: Aluminum, brass, steel, acetal, stainless steel and nitrile
  • Inlet pressure 90 PSI (6 BAR) and pressure drop 7.5 PSI (0.5 BAR)
  • Note: Designed for best performance with 32 grade oil
  • Max. Flow : 106 cfm (3,000 LPM)
  • Port Size : 3/8″
  • Bowl Size (Lubricator) : 1.98 oz (57 ml)
  • Height : 6.18″ (157 mm)
  • Width : 2.16″ (55 mm)
