Jet 408855 – (AFRLMI38) 3 PC Air Filter, Regulator and Lubricator 3/8″ NPT – Intermediate

Original price was: $197.59.Current price is: $145.21.

Sale!
SKU: JET408855 Category:
Share

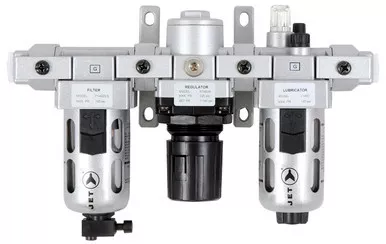

  • The filter, regulator and lubricator is a 3 piece assembly including all 3 individual components. The 3 components are attached in series using spacers and piping adaptors, which make the individual components easily removable / mountable without disturbing the pipe line. Comes complete with wall mounting bracket
  • Air filter is designed to eliminate dust, water and other impurities from reaching air tool, extending tool life
  • Air regulator governs air flow to desired PSI air pressure
  • Lubricator device is indispensable for air generated equipment, atomizing lubricant into the compressed air allowing it to reach and lubricate the internal parts of the air tool
  • Maximum Working Air Pressure: 145 PSI
  • Ambient Temperature: 0-60°C (32-140°F)
  • Modular Mounting
  • Vertical Mounting
  • Wetted Components: Aluminum, bronze, brass, steel, acetal, polycarbonate, stainless steel and nitrile
  • Inlet Pressure 105 PSI (7 BAR). Set Pressure 90 PSI (6 BAR). Pressure Drop 17 PSI (1 BAR)
  • Max. Flow : 71 cfm (2,000 LPM)
  • Port Size : 3/8″
  • Pressure Gauge Port Size : 1/8″
  • Bowl Size (Filter) : 1.08 oz (32 ml)
  • Bowl Size (Lubricator) : 1.93 oz (57 ml)
  • Height : 8.66″ (220 mm)
  • Width : 9.84″ (250 mm)
