Home » Shop » hot sale » Jet 408889 – (AFRH1) Air Filter Regulator Combination 1″ NPT – Heavy Duty

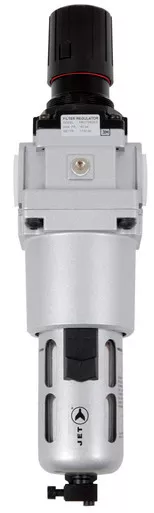

Jet 408889 – (AFRH1) Air Filter Regulator Combination 1″ NPT – Heavy Duty

Original price was: $599.40.Current price is: $447.06.

Sale!
SKU: JET408889 Category:
Share
  • Air filter and regulator combined in one unit
  • Air filter is designed to eliminate dust, water and other impurities from reaching air tool, extending tool life
  • Air regulator governs air flow to desired PSI air pressure
  • Regulators uses a Non Raising “Press to Lock” adjusting knob for locking at any set pressure
  • Regulators work on a Diaphragm operated, relieving type mechanism with pressure compensated by balanced poppet
  • Maximum Working Air Pressure: 145 PSI
  • Ambient Temperature: 0-60°C (32-140°F)
  • Modular Mounting
  • Panel Mounting
  • Wetted Components: Aluminum, bronze, brass, steel, acetal, polycarbonate, stainless steel and nitrile
  • Inlet pressure 105 PSI (7 BAR). Set pressure 90 PSI (6 BAR). Pressure drop 17 PSI (1 BAR)
  • Max. Flow : 193 cfm (5,500 LPM)
  • Port Size : 1″
  • Pressure Gauge Port Size : 1/4″
  • Bowl Size (Filter) : 5.6 oz (165 ml)
  • Height : 14.6″ (370 mm)
  • Width : 3.54″ (90 mm)
