Product Description

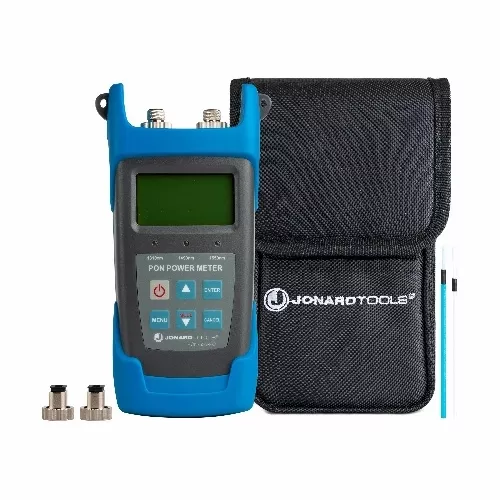

JONARD PON-55 Passive Optical Network Power Meter for BPON/EPON/GPON/APCDesigned to perform live testing with OLT equipment, this PON Power Meter with APC connectors is perfect for use during FTTx/PON service turn-up or maintenance. It is able to simultaneously test and measure the signal power of voice, data, and video connections, and is essential for the construction and maintenance of PON systems. This Power Meter also features the following:Includes APC/FC Adapters and APC/SC Adapters to directly connect to UPC/PC FC and SC fiber connectorsAnalyzes voice, data, and video signals in BPON/EPON/GPON FTTx systemsConcurrently measures 1310 nm Upstream Burst Signals and 1490/1550 nm Downstream Signal Measurements anywhere in the networkThree pass, warning, and fail LED indicators to allow you to quickly assess your network’s power levelSupports 1310 nm Upstream Burst Signal and 1490/1550 nm Downstream Signal MeasurementsUSB port allows quick transfer of data, and up to 1,000 measurement items can be saved at onceOptional 10 minute auto-off can be activated or deactivatedShatter-resistant sleeve protects it from accidental falls or other damageIncluded software allows you to set the thresholds, transfer data, and calibrate the wavelength from your PCIncludes: PON Power Meter, (2) APC/FC Adapters, (2) APC/SC Adapters, Carrying Case, Instruction Manual, Mini USB Cable, and (3) AA Batteries1GSpecificationsNetwork TypesBPON/EPON/GPONConnector TypesFC/SC (APC)Wavelengths1310 nm, 1490 nm, 1550 nmMeasurement Range-40 dBm~+10 dBmMax Output Power25 dBmDetector TypeInGaAsConnatural Uncertainty (dB)?0.5 dBLinearity (dB)?0.1 dBBatteries(3) 1.5V AATool Weight0.93 lb (0.423 kg)UPC 8100533503481 Year warranty
