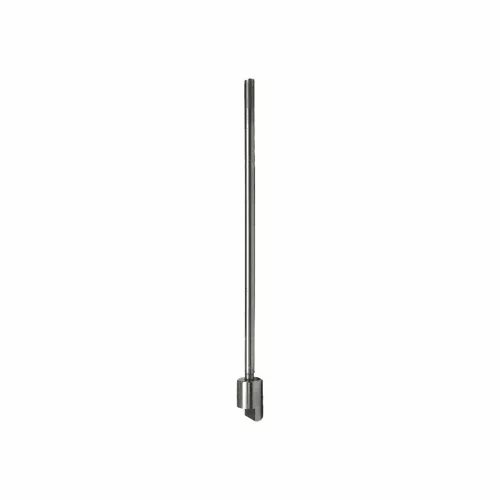

JONARDWB26SM Wire Wrapping Bit, 26 Awg 811490013056

Product Description

---

JONARDWB26SM Wire Wrapping Bit, 26 Awg 811490013056Fully compatible with any make or model of wire wrapping tools, this 3″ modified wire wrapping bit is perfect for wrapping 26 AWG wire around binding posts when used in conjunction with a wire wrapping tool.Provides one and a half turns of insulation per wire wrap, increasing the mechanical stability the wrapRecommended for use on 0.025″ (0.63 mm) square terminals with 0.100″ (2.54 mm) center-to-center of the pinsCompatible Wrap Sleeve Part : P26LNSpecificationsSleeve Part No.P26LN (sold separately)Wrap FunctionWrapWrap TypeModifiedWire Gauge26 AWG (0.40 mm)Maximum Insulation Diameter0.031″ (0.79 mm)Minimum Terminal Diagonal0.023″ (0.58 mm)Maximum Terminal Diagonal0.038″ (0.96 mm)Terminal Hole Depth0.75″ (19.05 mm)Effective Radius0.075″ (1.9 mm)Terminal Hole Diameter0.040″ (1.02 mm)Wrap Post Size0.025″ (0.63 mm)Length3″ (76.2 mm)Weight0.052 lb (23.58 g)UPC No.811490013056
