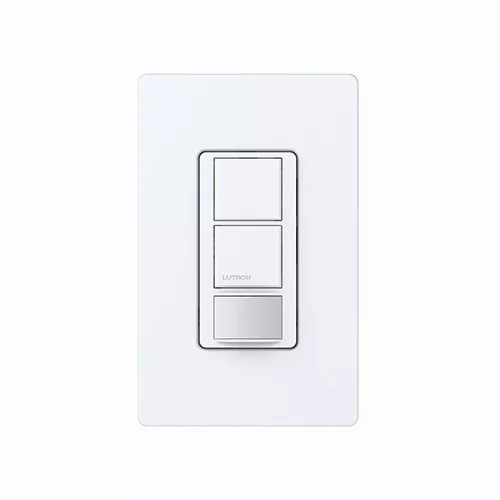

The Lutron Maestro Dual-Circuit Occupancy Sensing Switch combines two switches with an in-wall, passive infrared (PIR) occupancy or partial-on sensor. The sensor is intended for either:• Control of two circuits• Bi-level control of two circuits, as required by certain energy codes (e.g., ASHRAE)
Passive infrared motion detection with exclusive Lutron XCTTM Technology for fine motion detection
Neutral wire is required
180 deg sensor field-of-view
Up to 30 ft x 30 ft (9 m x 9 m) [900 ft2 (81 m2)] major motion coverage and 20 ft x 20 ft (6 m x 6 m)[400 ft2 (36 m2)] minor motion coverage 180 deg field-of-view
Occupancy version can be set to auto-on/auto-off or manual-on/auto-off
Vacancy version available to meet CA title 24 requirements
Adjustable timeout: 1, 5, 15, or 30 minutes
High-low sensitivity adjustment
Occupancy sensing switch lighting loads: incandescent, halogen, MLV, ELV, CFL, LED, magnetic fluorescent, and electronic fluorescent
Specifications
Brand Name
Lutron
Sub Brand
Maestro
Item Name
Occupancy Sensor Switch
Type
Dual-Circuit, Partial-On, XCT Technology
Voltage Rating
120 – 277 VAC
Amperage Rating
6 A
Temperature Rating
0 °C to 40 °C
Mounting Type
Wallbox
Material
Plastic
Standards
UL Listed, cUL Listed, NOM Certified, Title 20/24
Application
For Lighting Control
UPC
784276069670
