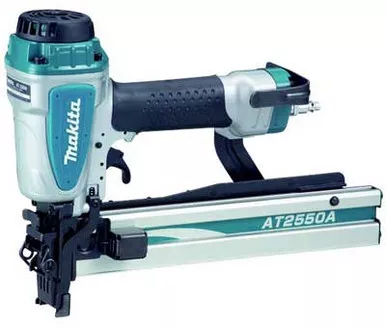

AT2550A — 1″ 16 ga Crown Stapler
1″ – 2″ (1″ Width) 16-Gauge Stapler (S Series)
The AT2550A 1″ 16-Gauge Crown Stapler is designed for professional fastening performance in a compact, comfortable body. With a 1″ to 2″ staple length range and 1″ crown width, this S Series stapler delivers consistent results in a wide variety of applications. Features like a 360° exhaust system, dry-fire prevention, and a rubberized grip help increase tool life and operator comfort on the job.
Features
- 360° exhaust system directs exhaust away from the operator
- Dry fire prevention feature prolongs tool life
- Rubber grip for comfortable, secure handling
- Inlet filter helps prevent contamination from dust and debris
- Quick release nose for easy clearing of jammed fasteners
Items Included
- Oil Supply (181434-7)
- Safety Glasses (A0908-0171)
- Wrench (A0913-0011)
Images shown may not represent the full listing or the true size of included items.
Specifications
| Model | AT2550A |
| Operating Air Pressure | 65 – 120 PSIG |
| Staple Size (L x W) | 1″ – 2″ (1″ width) |
| Nail Type | 16 ga Crown Staples |
| Magazine Capacity | 140 |
| Vibration Level | 2.5 m/s² |
| Noise Level | 84 dB(A) |
| Dimensions (L x W x H) | 14-1/2″ x 3″ x 10-1/4″ (370 mm x 76 mm x 260 mm) |
| Net Weight | 4.9 lbs (2.2 kg) |
Shipping Information
| Shipping Dimensions (L x W x H) | 4.92″ x 15.75″ x 13.78″ |
| Shipping Weight | 6.83 lbs |
