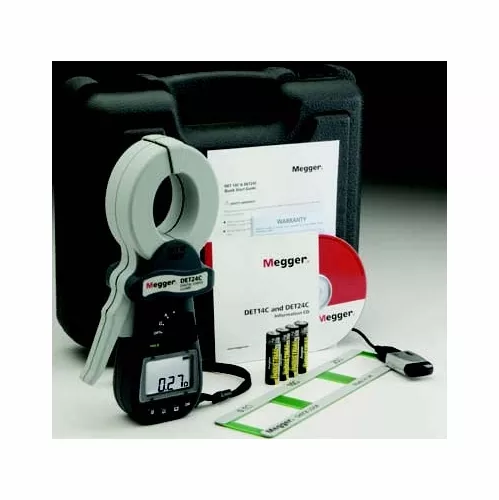

MEGGER DET14C CLAMP-ON GROUND RESISTANCE TESTER ( )

Product Description

---

MEGGER DET14C CLAMP-ON GROUND RESISTANCE TESTER (NEW)DET14C and DET24CClamp-on Ground Resistance Testersn Large elliptical clamp designn Smooth mating surfaces on the clamp headn CATIV 600 V operationn Noise filter functionn Intelligent data hold functionn Data storage with time- and date-stamped resultsDESCRIPTIONThe DET14C and DET24C are advanced clamp-on ground resistance testers that set new standards in terms of access, performance, features, simplicity of operation and safety. The DET14C and 24C are used to measure earth/ground resistance in multiple loop installations without disconnecting the ground.Designed with flat core ends, these units prevent dirt build-up, ensuring measurement integrity and improved reliability over products with interlocking teeth. Other enhancements include safety to CATIV 600V, a built-in filter function for electrically noisy environments, time and date stamped stored test results and ultra long battery life. Megger has taken what is now a standard test method and significantly improved its field applicability.The DET14C and DET24C are designed to quickly measure ground electrode resistance in applications where this type of test method can be used and/or verify the integrity of ground connections. The goal of ground resistance testing is to ensure that the resistance ground electrode system is low enough to prevent or limit voltage rises caused by fault current, electrical surges, lightning strikes, etc.Clamp-on ground testers work in applications where there is a loop resistance to measure with ground paths in the system (the more ground paths, the closer to the actual resistance). A utility pole ground system is a classic example of this type of application.Typical end users include:n Power utilitiesn Electrical contractors/electriciansn Specialist grounding contractorsn Electrical testing companiesn Telecommunications companiesn Railroadsn Mining companiesThe DET14CORDERING INFORMATIONItem (Qty) Cat. No.DET14C Digital earth test clamp-on meter 1000-761DET24C Digital earth test clamp-on meter 1000-762Included accessoriesCarrying case 1001-715Carrying strap (wrist loop) 1001-716User guide CD-ROM 1001-198Calibration check 1001-498Battery AA (Alkaline) (4 required) 25511-841Included accessories for DET24C onlyUSB IrDA dongle 90001-434PowerDB Lite software 1000-576***picture is of DET24C***
