HingeJig
Self-Clamping Door Hinge and Latch Jig.

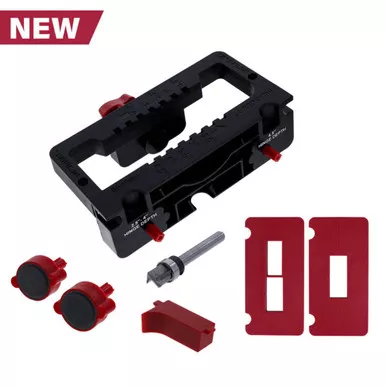

Save time and remove the guess work when installing new doors into existing frames with the Milescraft HingeJig. This self-clamping jig comes with everything needed to rout hinge and latch mortises onto new doors. The self-clamping feature holds the HingeJig in place while routing without the use of screws or nails that can leave holes in a finished door.
Self-Clamping
- Padded clamp design sets up quickly and prevents damage to doors caused by mounting screws or nails
Fits All Doors
- Adjustable settings allow door hinge jig to be used on all standard size 1-3/8″ and 1-3/4″ thick doors
Works with Multiple Hinge Sizes
- Routs hinge mortises for 2-1/2″ to 4-1/2″ hinges
Rout Different Radiuses
- Cut professional hinge mortises with 1/4″, 5/8″, or square corners. (Chisel Required)
Unique Design
- Design of the HingeJig eliminates need for multiple inserts to rout different hinge corner radiuses
Create Latch Plate Mortises
- Kit includes templates to rout common door latch mortises sized 1″ x 2-1/4″, 1-1/8″ x 2-1/4″, and 1-1/8″ x 2-3/4″
Built in Depth Setting
- Set router bit depth with built-in depth setting gauge for smaller or larger size door hinges
Self-Guided Router Bit
- Includes custom router bit with ball bearing to cut clean and smooth door hinge mortises
Built-in Storage
- Contains built in storage compartments for router bit and available self-centering hinge bit (not included) for convenient retrieval
For Doors Only
- Not for use when routing door hinges on jamb / frame
Specs
- Compatible Door Thickness: 1-3/8″ and 1-3/4″ Doors
- Latch Sizes: 1″ x 2-1/4″, 1-1/8″ x 2-1/4″, and 1-1/8″ x 2-3/4″
- Door Hinge Sizes: 2-1/2″, 3″, 3-1/2″, 4″, and 4-1/2″
- Hinge Corner Radius Sizes: 1/4″, 5/8″, or Square (Chisel Required)
- Door Mounting: Padded Self-Clamping. No Hardware Required
- Adjustable Backset Plugs: Adjust for Door Hinge Routing, 1-3/8″ Latch, and 1-3/4″ Latch
- Storage: Built-in for router bit and available self-centering hinge bit (not included)
- Guided Router Bit: 12mm Cutting Head with 1/2″ Ball Bearing
- Includes: Jig Main Body, Built-in Clamp, Adjustable Hinge Spacer, 12mm Router bit with Bearing, 2x Adjustable Backset Plugs, 2x Latch Templates
