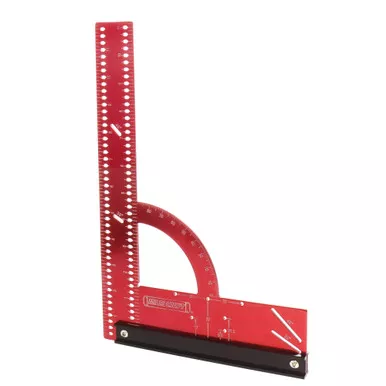

MC-Square300 (Imperial)
The multi-functional MC-Square300 is the perfect reference measurement and marking tool for precise woodworking, remodeling, and many other applications. With the built-in easy angle readout, you can also mark 30-degree and 45-degree angles. Need to draw a circle? This square can do that too, simply remove the fence and secure the square with a nail or screw.
Sturdy, Lightweight, Aluminum Body
- Inside and outside scales for measuring and marking the inside and outside of your work piece
- 12″ (300mm) square with 1/4″ notch spacing
- Two quick angle finders for 30° and 45°angles
- Elongated notches for accurate line scribing
- Anodized aluminum material with 3mm thickness
- Three holes that are 32mm apart and 37mm from the edge for the layout of shelf pins
- Holes for the layout of standard 26mm and 35mm hinge cups
Aluminum Fence
- Can be removed to lay square flat on your workpiece or to draw circles
We also carry a metric version of this product, see the related products below for details.
Specs
- Dimensions: 12″ (300mm) x 8″ (200mm)
- Material: Aluminum
