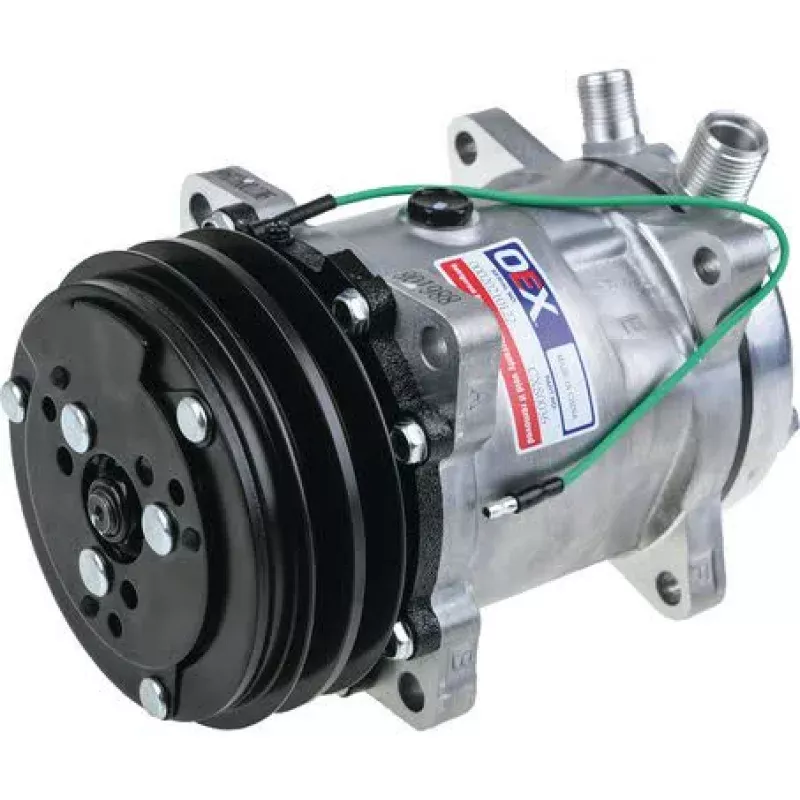

The OEX Air Conditioning Compressor CXS0036 is a 24V ear mount unit in SD5H14 style, supplied as each. It is listed with a 132mm clutch diameter, AA pulley section and a vertical O-ring fitting type, so the mounting and connection style should be checked carefully against the original compressor before purchase.
This compressor is identified as suitable for Sanden applications and is described as a universal 24V 2A 132mm unit. The unit rotates clockwise and counter-clockwise, uses PAG46 oil and has an oil capacity of 180ml. Those details matter when comparing it to the existing system, especially where compressor style, oil type or pulley arrangement need to match.
A two-year warranty is listed for this OEX compressor. The part number is CXS0036 and the product description is OEX Air Conditioning Compressor 24V Ear Mount SD5H14 Style. That makes the part number, voltage, mount type and fitting style the key checkpoints when ordering a replacement compressor for a compatible vehicle or machine.
Key Features
- 24V air conditioning compressor
- Ear mount design
- SD5H14 style
- Vertical O-ring fittings
- AA pulley section
- 132mm clutch diameter
Specifications
- Brand: OEX
- Part No.: CXS0036
- Type: Air conditioning compressor
- Voltage: 24V
- Compressor mounting: Ear mount
- Series: SD5H14
- Suits unit make: Sanden
- Fitting type: Vertical O-ring
Fitment references provided
- CASE 1155D
- CASE 1450B
- CASE 1550
- CASE 850D
- HERCULES HE650B
- JCB 531-70 AGRI
- TEREX O&K MT3300AC
- VOLVO CONSTRUCTION L120C
Application and Buying Notes
Before ordering, compare the part number CXS0036, the 24V electrical requirement and the ear mount configuration against the compressor already fitted to the machine. The compressor is listed with SD5H14 style, vertical O-ring fittings and a 132mm clutch diameter, so matching those physical details is just as important as matching voltage.
The listed oil specification is PAG46 with an oil capacity of 180ml. If the system has been opened, repaired or contaminated, the correct oil type and quantity still need to be confirmed by the installer. Compressor replacement work is rarely just a matter of bolting on the unit; the fittings, line position, pulley section and oil requirement should all be checked before the job is started.
This compressor is noted as rotating clockwise and counter-clockwise, which may help where rotation compatibility is relevant, but it does not remove the need to verify the original application. The gauge line is listed at 39.55mm and the pulley section is AA, so the existing setup should be compared visually and by measurement where access allows.
Fitment references are provided for several CASE, HERCULES, JCB, TEREX O&K and VOLVO applications, including CASE 1155D, JCB 531-70 AGRI, TEREX O&K MT3300AC and VOLVO CONSTRUCTION L120C. Use those references as a guide only and still confirm the exact compressor style, mount and part number against the machine to avoid ordering the wrong unit.
Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.
For workshop, fleet, and equipment applications, accurate identification of part number CXS0036 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.
Relevant published details for this unit include Type AIR CONDITIONING COMPRESSOR, Unit of Measure EACH, Warranty Two Years, Compressor Mounting Ear Mount, Pulley Section AA, Suits Unit Make Sanden, Note O Rings to suit ORX008 & ORX010 . Will Rotate CW & CCW. Oil type PAG46., Oil Capacity 180ml, Head Code FL, Product Group 1 COOLING.
Additional published details for cross-checking include Part No. CXS0036, Brand OEX, Description OEX Air Conditioning Compressor 24V Ear Mount SD5H14 Style, Clutch Diameter 132mm, Fitting Type Vertical O Ring, Series SD5H14, Voltage 24, Gauge Line 39.55mm, Dust Cover Y/N No.
OEX Air Conditioning Compressor 24V Ear Mount SD5H14 Style. Part number CXS0036 should be checked first. Listed voltage is 24. These details form the core reference points used by parts interpreters when confirming the correct replacement.
Pulley configuration is AA. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.
For part number CXS0036, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.
For a air conditioning compressor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.
Compatibility note: Confirm fitment by matching part number CXS0036, 24V voltage, ear mount design, SD5H14 style, vertical O-ring fittings, 132mm clutch diameter and the listed application details before ordering.
FAQ
What is the part number for this compressor?
The listed part number is CXS0036. For this listing, part number CXS0036 is the main reference point. Listed voltage is 24. Published fitment references include CASE 1155D, CASE 1155D 1984, CASE 1155D 1985. These details should still be checked against the original unit before ordering.
What voltage does this compressor use?
It is a 24V air conditioning compressor. For this listing, part number CXS0036 is the main reference point. Listed voltage is 24. Published fitment references include CASE 1155D, CASE 1155D 1984, CASE 1155D 1985. These details should still be checked against the original unit before ordering.
What mounting style does it have?
It is listed as an ear mount compressor. For this listing, part number CXS0036 is the main reference point. Listed voltage is 24. Published fitment references include CASE 1155D, CASE 1155D 1984, CASE 1155D 1985. These details should still be checked against the original unit before ordering.
What refrigerant oil type is specified?
The listed oil type is PAG46, with an oil capacity of 180ml. For this listing, part number CXS0036 is the main reference point. Listed voltage is 24. Published fitment references include CASE 1155D, CASE 1155D 1984, CASE 1155D 1985. These details should still be checked against the original unit before ordering.
Does it rotate in both directions?
Yes. The notes state that it will rotate clockwise and counter-clockwise. For this listing, part number CXS0036 is the main reference point. Listed voltage is 24. Published fitment references include CASE 1155D, CASE 1155D 1984, CASE 1155D 1985. These details should still be checked against the original unit before ordering.
Which applications are referenced for fitment?
Fitment references include CASE 1155D, CASE 1450B, CASE 1550, CASE 850D, HERCULES HE650B, JCB 531-70 AGRI, TEREX O&K MT3300AC and several VOLVO applications including CONSTRUCTION L120C, L45B, L50C, FL10, FL6 and FL7. For this listing, part number CXS0036 is the main reference point. Listed voltage is 24. Published fitment references include CASE 1155D, CASE 1155D 1984, CASE 1155D 1985. These details should still be checked against the original unit before ordering.
