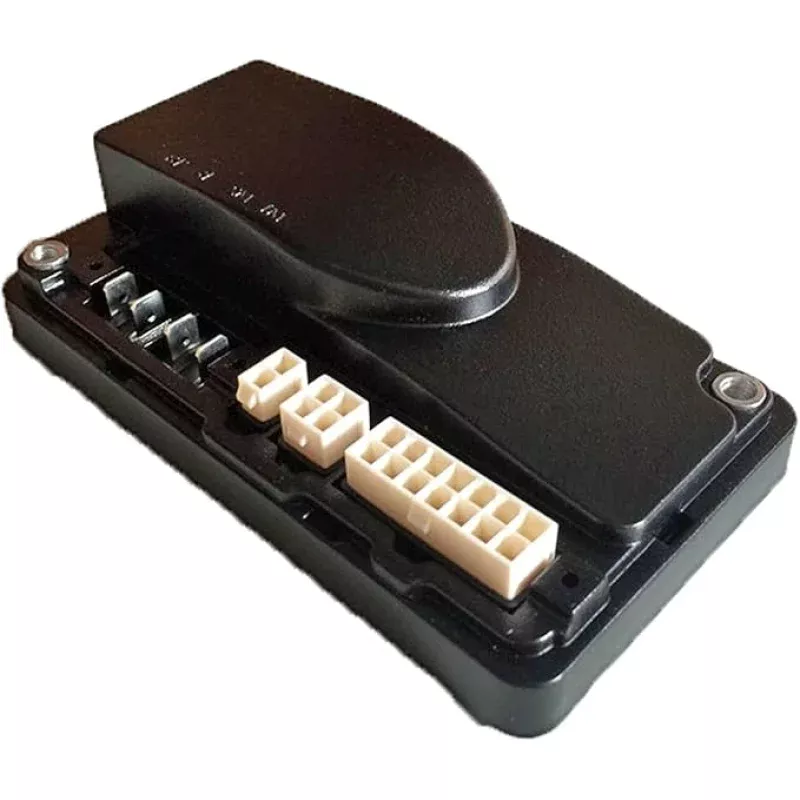

Permanent Magnet Motor Speed Controller For CURTIS 1212P-2501 24V/90A Forklift

Notice: For the buyer without CONTROLLER APPLYING EXPERIENCE, please consult your cart/motor dealer and read carefully the CURTIS 1212&1212P Controller Manual before making the purchase.Key Features:CURTIS Model: 1212P-2501Norminal Battery Voltage (Volts): 24V10 Second Current Rating (amps): 902 Minute Current Rating (amps): 501 Hour Current Rating (amps): 20Peak Boost Current (amps): 90Max Boost Current Duration: 10 SecondMinimum motor resistance: 120 mB+, B- logic pin current (max.): 9 A (pins 7 and 13 on 14-pin connector)KSI input current (typical): 80 mALogic input current (typical): 1 mAHorn output current (max.): 15 mABDI output voltage, resistance (max.): 05 V, 10 kLED output current (max.): 15 mAElectromagnetic brake coil resistance (min.): 32 PWM operating frequency: 15.6 kHzElectrical isolation to heatsink (min.): 500 VACUndervoltage cutoff: 14 VOvervoltage cutoff: 34 V

Throttle Type:By default, the Throttle Type of controller 1212P-2501 is set as Type 7 (7 = single-ended; neutral when wiper PotLow). The 1212P-2501 controller can accept inputs from both 5k, 3-wire pot throttles and voltage throttles. Set the throttle type parameter to match the throttle used in your application.

5k, 3-wire pot throttles:0 = wigwag1 = inverted wigwag2 = single-ended; neutral when wiper at PotLow3 = inverted single-ended; neutral when wiper at PotHigh4 = unipolar

Voltage throttles5 = wigwag6 = inverted wigwag7 = single-ended; neutral when wiper PotLow8 = inverted single-ended voltage; neutral when wiper PotHigh9 = unipolarRegulatory compliance: Designed to meet EN 12184, EN 55022, IEC 61000-6-2 & -4-6, and ISO 7176; FDA documentation filed; TV Certification pending
