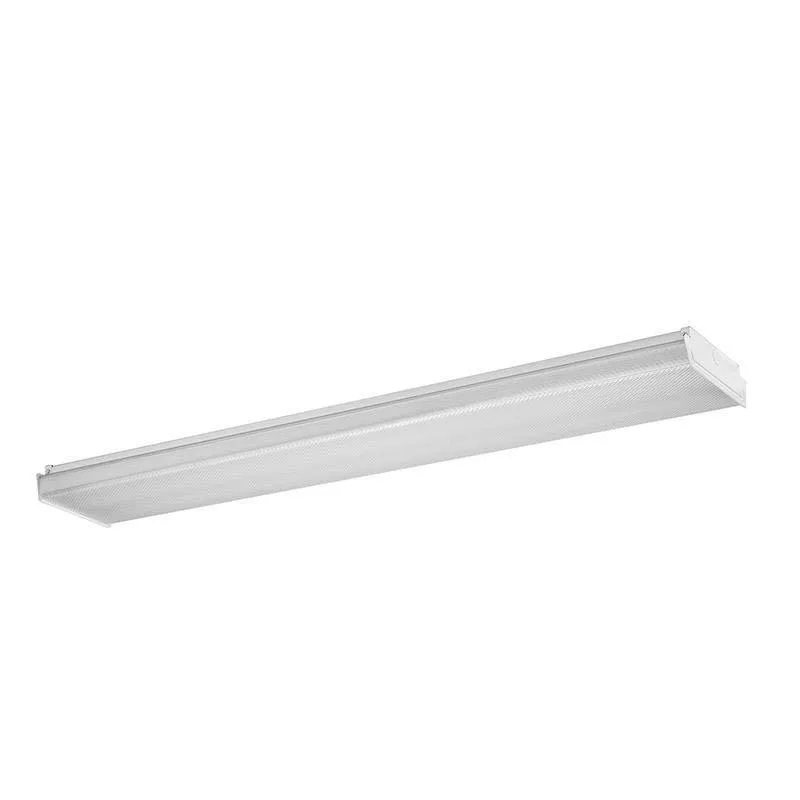

Pattern 12 bottom prisms with interior linear side wall prisms for maximum cleanliness and light control. Tapered shape provides a modern appearance. Full steel end plates feature embosses for improved aesthetics. 100% virgin acrylic lens hinges from either side for easy maintenance. Housing is multi-stage phosphate treated for maximum corrosion resistance and finish coat is high reflectance baked white enamel. Multiple knockouts accomodate a variety of mounting methods. Heavy duty channel of code gauge die formed steel. For surface or stem mounting. cULuslisted for direct mounting on low density ceilings and damp locations. Self-contained fluorescent emergency power packs can be incorporated, listed for dry locations. Lamp holders may be individually replaced or rewired.
Specifications
| Brand Name | Day-Brite CFI | Sub Brand | Day-Brite |
| Item Name | Wraparound Fixture | Type | Narrow |
| Fixture Wattage | 32 W | Number of Lamps | 2 |
| Housing Finish | White | Application | For Emergency Lighting |
| Lamp Wattage | 32 W | Lamp Base | G13 Medium Bi-Pin |
| Ballast Type | Electronic | Mounting Type | Ceiling, Surface |
| Housing Material | Steel | Dimensions | 48 in L x 8.63 in W x 2.81 in H |
| UPC | 734340608281 |
