Product Description

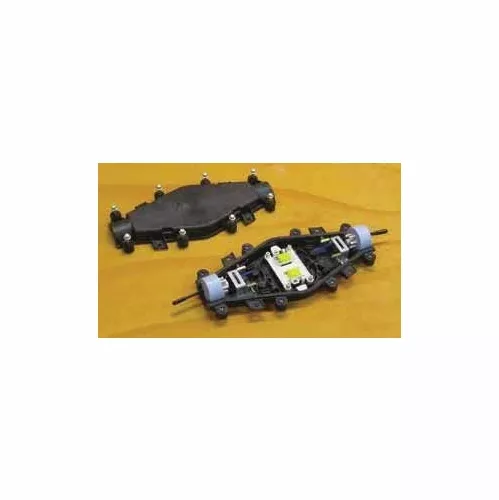

Preformed Line Products COYLCCFR-F010 COYOTE LCC W/ BOBBIN NEWFor Single Fusion. Includes: (1) Bobbin Kit, (1) 1-Hole Grommet: Cat. 8003691 and (1) 12-Hole Grommet: Cat. 8003796Key Features -Size: 14″ L x 6.5″ W x 2.4″ D (356 mm x 166 mm x 62 mm) -Max. Splice Capacity: (24) Single fusion, (72) Ribbon/ Mass Fusion -Configuration: In-line or Butt Splice -Port Quantity: 2 (1 each end) -Application: Direct buried, below grade, pole/wall mount or aerial -A cost effective solution for quick restoration of damaged/ cut fiber service drops -Tested in accordance to TR-NWT-000251 by an independent outside lab -Available in flame retardant material -Factory installed gasket allows re-entry and re-use -Flexible grommet sealing technology supports a wide range of flat or round cable profiles -Quick to assemble, no special tools required -Flat shape allows for mounting in small areas -Utilizes the LITE-GRIP® Splice Block System which permits single fusion, mass fusion, mechanical, PLC splitters or a combination of all within one closure***For the COYOTE LCC Flame Retardant catalog numbers, insert “FR” into the catalog number code.
