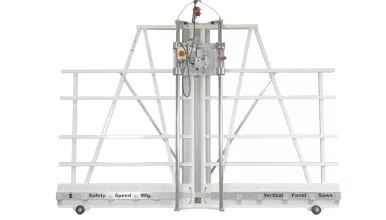

The 6400 provides a 64″ maximum crosscut while the 6800 provides a 74″ maximum crosscut. The maximum ripcut (horizontal) is dependent on pushing the panel through.
Standard Equipment
- 3 Hp worm driven heavy-duty saw motor.
- 10 ft. welded steel frame.
- Chrome-plated 1 3/4″ guide tubes.
- 8 Nylatron roller bearing systems.
- Adjustable vertical and horizontal rulers.
- Quick change from vertical to horizontal cutting.
- Thin material pressure guard.
- Solid aluminum material rollers.
- Enclosed counterweight system.
- Integrated dust collection bonnet.
- TUV certified to UL/CSA standards.
Additional information
| Weight | 598 lbs |
|---|---|
| Dimensions | 124 x 17 x 92in |
| Max. Crosscut |
64″/1625mm |
| Max. Rip Cut |
Unlimited |
| Cut Depth |
1 ¾”/45mm |
| Cut Accuracy |
1/64″/.4mm |
| Frame Length |
120″/3050mm |
| Daily Usage |
3-5 Hours |
| Rollers |
14 |
| Saw Blade Diameter |
8″/210mm |
| Saw Blade Bore |
5/8″ |
| Motor |
13 amp, 120V |
| Country of Origin |
USA |
