Product Description

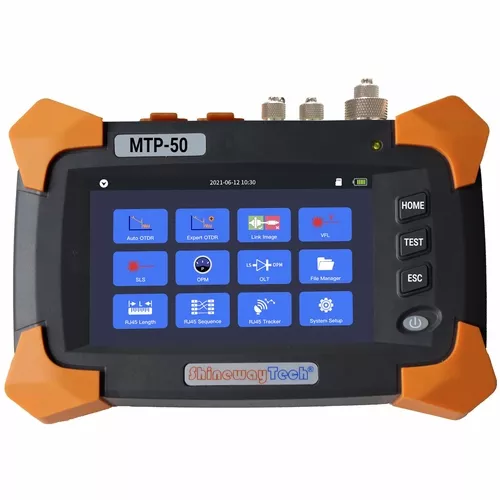

MTP-50-S20A Basic VersionAuto OTDR, Expert OTDR, Link Image, VFL, SLS, OPM, OLT and LED FlashlightMTP-50 Series Handheld OTDR Most compact, versatile, easy-to-use, cost-effective OTDRMTP-50 series OTDR offers more testing capacities, flexibility and value with combination of optical fiber testing and RJ45 cable testing functions together which includes Auto OTDR, Expert OTDR, Link Image, Optical Power Meter, Stabilized Laser Source, Optical Loss Test, Visual Fault Locator, RJ45 Cable Length, RJ45 Cable Sequence and RJ45 Cable Tracker. With considerate function of LED flashlight and high capacity of 6600mAh lithium battery, it helps the technicians operate OTDR in dark environment and at remote work site without worrying about running out of battery power. MTP-50 series OTDR is your ideal test instrument for optical fiber installation and maintenance which meets various testing requirements of entire fiber network.Key Features:Compact, handheld, lightweight & easy to use 5 inch capacitive touch screen for easily operation and quick response Fast boot-up for fiber troubleshooting and restoration Multi-tasking operation which can perform OTDR, OPM and VFL function simltanueously Dual wavelength testing with dynamic range up to 28dB Short-distance performance with 1.5m event dead zone and 8m attenuation dead zone Auto OTDR/Expert OTDR/Averaging/Real time test Link Image – smart Icon-based map view by multi pulse widths acquisitionBuilt-in Stabilized Laser Source, Optical Power Meter, Optical Loss Testing and VFL Optional RJ45 cable testing function supported: RJ45 cable length, RJ45 cable sequence and RJ45 cable tracker(Available for ADVANCED models) Pass/Fail assessment and ORL test function 8G memory card, supporting more than 200,000 test records storage OTDR trace file generation (.sor) PC software for batch data processing USB power charging and data transfer Screenshot easily in any interface 8 hrs continuous operation/20 hrs standbyMulti-touch touchscreen5.0 inch multi-touch capacitive touchscreen can make OTDR operations simple and intuitive. The technicans can easily tap, pinch and drag by fingers with quick OTDR responseOTDR View ModesMTP-50 series OTDR can generate and display events by tradational TRACE view and MAP view. Tradational TRACE view is showed by OTDR waveforms and event markers while MAP view is with simple, icon-based map for easy interpretatation of fiber network events.Auto OTDRSimply pressing one single button, powering by fully automated and optimized test parameter setup, MTP-50 series OTDR can process OTDR measurement, detects and comprehensively analyze network events with PASS/FAIL judgement based on user-defined thrsholds. It greatly helps OTDR beginners operate OTDR more efficiently.Expert OTDROTDR test parameters can be set manully depending on test requirements or the technicians skill level. The fiber trace is displayed and results are listed in event table including total fiber length, total link loss, fiber attenuation, etc.Link ImageLink Image software helps technicians use an OTDR more efficiently, without the need to understandor interpret OTDR results. Measurement acquistions with multi pulse widths and smart algorithm enable the technicians to detect and comprehensively characterize netowrk events by pressing one single button. Simple icon-based map view for easy interpretation of network events with PASS/FAIL judgement as per user-defined thresholds.”Icon-based fiber link view of all events”Automatic pass/fail results”Eliminates the need for OTDR expertiseVisual Fault LocatorOutputs red light for checking continuity of launch fibers or short patch cord. Breaks and bending in fiber can be identified visually.Optical Power Meter”No warm-up”High accuracy, zero shift”Reference setting”Absolute power value andpower lossmeasurementStabilized Laser SourceStabilized Laser Source shares OTDR optical port and work on the same working wavelength of OTDR. The output power can be adjustable for different testing applications. With modulated light at 270Hz/330Hz/1kHz/2kHz, it can be used for fiber identification or continounity check purpose on a live fiber network.Optical Loss TestOptical loss test is a key basic function for confirming the optic fiber installation condition and fault status. Light source shares with OTDR ports outputs laser light. The optical power meter function is embeded into a separate port which supports optical loss measurement by one single tester.RJ45 Cable Test (Available for ADVANCED models)Optimized Interface designUSB Power Charging and Data Transfer USB port can be used for power charging and data transfer which is very convenient for technicians operation in the filed. No need to carry a bulky AC adaptor anymore and even can be charged by portable power bank.Multi-taskingLeveraged by excellent hardware design, the technicans can perform multiple functions simultaneously. For exmple, the technicans can conduct OTDR testing on a particular fiber while checking the power level by OPM function or identifying the fiber with VFL function simltanueously on other fiber cores.Multi-language User InterfaceSupported with Mutli-language user interface, the technicians can operate MTP-50 series OTDR with their native language easily and smoothly.Simple Firmware UpgradesFirmware upgrades can be performed easily via USB Type C port which connecting with PC.OTDR Trace Manager SoftwareTraceManager software can display, analyze and edit trace files, generate and print comprehensive test and analysis reports in various forms.”Trace viewing, events analysis “Batch editing and flexible printing”Trace viewing, events analysis “Multi traces comparison”Batch editing and flexible printing”CSV/ASCII report formatsOTDR SpecificationsModel (1)Wavelength (±20nm)Dynamic Range(2)EDZ(m)(3)ADZ(m)(3)BasicAdvancedMTP-50-S20AMTP-50-S20A-R1310/155024/22dB1.58MTP-50-S20BMTP-50-S20B-R1310/155028/26dB1.58Selectable Range0.5,1,2,4,8,16,32,64,100KMPulse Width3ns~20usAveraging Time5s, 15s, 30s, 1min, 2min, 3minDistance Measure Accuracy±(1m + 5×10-5×distance + sampling space)Attenuation Detect Accuracy±0.05 dB/ dBReflection Detect Accuracy±3 dBSampling Points16,000~256,000Sampling Resolution0.05~8mRefractive Index1.00000~2.00000Loss Resolution0.001dBLoss Threshold0.01dBConnectorSC/UPC(Interchangeable FC, ST)Multi-taskingSupportFunctional Module SpecificationsVisual Fault LocatorWavelength (±20nm)650nmOutput Power (dBm) ?10mWMODCW/1Hz/2HzConnectorUniversal 2.5mmStabilized Laser SourceWavelength (±20nm)Same as OTDR working wavelength(4)Output Power (dBm)?+3dBm?-10dBm?±2dB(adjustable)MODCW/270/330/1K/2KHzStability CW, ±0.5dB/15min(After 15 min warming up)ConnectorFC/UPC(Interchangeable SC, ST)Optical Power MeterCalibrated Wavelength (nm)850,980,1300,1310,1490,1550,1625,1650Power Range (dBm)-70 ~ +6Detector TypeInGaAsDisplay Resolution0.01dBAccuracy± 5%Frequency IdentificationCW/270/330/1K/2KHzConnectorUniversal 2.5mmOptical Loss TestStabilized Laser SourceSame as SLS ModuleOptical Power MeterSame as OPM ModuleIL TestSupportRJ 45 Cable Length Test (5)Test Distance?300mRJ 45 Cable Sequence Test (5)Sequence TestSupportRJ 45 Cable Tracker (5)ModeDigital trackingDistance ?300mOnline/Line Pair TrackingSupportGeneral SpecificationsDisplay5 inch color LCD, Multi-touch capacitive touchscreenPower SupplyLithium Battery: 3.7V, 6600mAhAC Adapter: 5VDC, 2ABattery Life8 hours continuous operation, 20 hours standbyData Storage8G, ?200,000 recordsData InterfaceUSB Type COperating Temperature-10? ~ 50?Storage Temperature-40? ~ 70?Relative Humidity0~95% (non-condensing)Weight0.7kg(Including battery)Dimensions (H×W×T)190×130×65mm* Specifications subject to change without noticeNotes:(1) Specifications describe the instrument’s warranted performance, measured with typical UPC type connectors. Uncertainties due to the refractive index of fiber are not considered.(2) The dynamic range is measured at maximum pulse width and averaging time of 3 minutes.(3) Conditions for dead zone measurement: minimum range, minimum pulse width, reflection intensity is less than -45dB, typical value.(4) Stabilized laser source shares OTDR optical port and work on the same OTDR wavelength. (5) Visual Fault Locator, Stabilized Laser source, Optical Power Meter, Optical Loss Test is standard on BASIC and ADVANCED models. RJ45 cable length, RJ45 cable sequence and RJ45 cable tracker is standard on ADVANCED models only.Ordering InformationStandard Package Includes:Instrument, SC/UPC connector, Lithium battery, Trace Manager software CD, USB Data cable, AC adaptor, Soft carrying case, Warranty card, Certificate of calibration.
