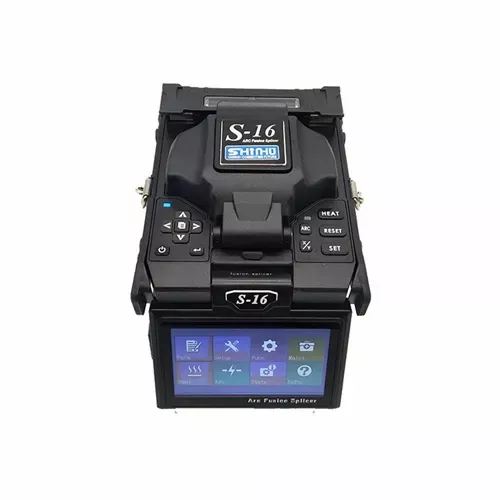

SHINHO S16 Active Clad Alignment Fusion Splicer Kit with X50B cleaver (Touch Screen Version)

Product Description

---

SHINHO S16 Clad Alignment Fusion Splicer Kit with X50B cleaver(Touch Screen Version)4 Motor Active V-groove Clad Alignment Fusion Splicer S16Active V-groove Fusion Splicer4 motors active v-groove accurate alignmentRobust all alloy construction including top coverEconomical and suitable for FTTx/ FTTHAutomatic ARC & position calibration1s boot up, 7s splicing, 26s heatingStable performance, average splice loss 0.02dBInductive automatic heater, industrial CPUBig capacity battery, more than 250 cycles splice & heatSuitable for bare fiber, patch cords, drop cable etc.Robust Multi Function ARC Fiber Fusion Splicer S16S-16 Fiber fusion splicer is a robust and stable model, used for both indoor and outdoor projects. it is with the upgrade the CPU to get the faster operation speed. It is also with the latest fiber alignment technology to get the low fusion loss. It is suitable for MAN/Telecommunication/FTTx and other related fiber optical projects.Features1s boot up, 6s splicing, 18s heating4 motors accurate fiber alignment technologyFast splicing and heating, automatic ARC calibrationInductive automatic heater, upgraded quad-core CPU76cm dropping anti-shock, IP5X dustproof and IPX2 waterproofSpecificationsApplicable fiberSM(ITU-T G.652),MM(ITU-T G.651),DS(ITU-T G.653),NZDS(ITU-T G.655)Diameter of cladding80 -150µmDiameter of coating160-900µmTypical splice lossSM: 0.02dB, MM: 0.01dB, DS: 0.04dB, NZDS: 0.04dBReturn loss> 60dBFibe cleaved length5-16mm ( coating diameter <250um), 16mm (coating diameter:250-1000um)Splicing program40 groupsOperate modeAutomatic/ManualAuto-heatingAvailableTypical splicing time6 secondsTypical heating time18 secondsFiber magnification250X (X or Y view), 125X (X and Y view)Display screen4.3 inch color LCD monitorRecords storage4000 resultsLoss evaluationAvailableTension test1.8-2.2 NInterfaceGUI menu interface, easy for operationBattery5200mAh Li-battery, typical 250 cycles splicing and heating, support separating chargingPower supplyAdapter, input: AC 100-240 V(50/60HZ), output: 11-13.5VElectrodes lifeMore than 4000 ARC discharges, can be replaced convenientlyTernimalUSB2.0 port, for software upgrading and records exportingOperating conditionsAltitude: 0-5000m, Humidity: 0-95%, Temperature: -10?~+50?, Wind speed: Max 15m/sDimension160mm(L) * 136mm(W) * 140mm(H) (with rubber armor)Weight2.20kg (including battery)
