Product Description

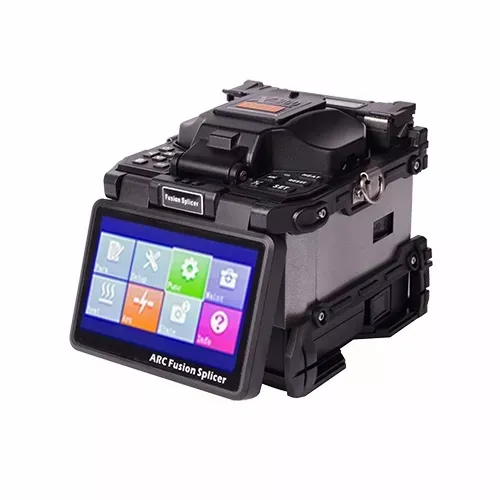

SHINHO X900 Core Alignment Fusion Splicer Kit with X50B cleaver(Touch Screen Version)Core Alignment Fusion Splicer X900 with 6 MotorsMetal Housing Body and Cover with Protection bumpersSix motors fusion splicer, real core to core alignment technology.6s splicing, 18s heating, identify fiber types automatically.Used for WAN/ MAN/ Telecommunication projects.Features1s boot up, 6s splicing, 18s heatingFiber type identification automaticallyReal-time ARC calibration automaticallyInductive automatic heater, separate charging batteryIndustrial quad-core CPU, Japan imported core partsSpecificationsApplicable fiberSM(ITU-T G.652),MM(ITU-T G.651),DS(ITU-T G.653),NZDS(ITU-T G.655), EDFA, others(including G.657)Diameter of cladding80 -150祄Diameter of coating160-900祄Typical splice lossSM: 0.02dB, MM: 0.01dB, DS: 0.04dB, NZDS: 0.04dBReturn loss> 60dBFibe cleaved length5-16mm ( coating diameter 2.2NInterfaceGUI menu interface, easy for operationBattery5200mAh Li-battery, typical 300 cycles splicing and heating, suppport separating charging, operating time more than 5 hours, discharging time more 8 hoursPower supplyAdapter, input: AC 220?30V(50/60HZ), output:DC 12?2VElectrodes lifeMore than 5000 ARC discharges, can be replaced convenientlyTernimalUSB2.0 port, for uploading splicer results and upgrading softwareOperating conditionsAltitude: 0-5000m, Humidity: 0-95%,Operating Temperature: -25?~+50?, Storage temperature -40?~+80?;Wind speed: Max 15m/sDimension156mm(L) * 141mm(W) * 156mm(H) (including rubber armor)Weight2.45kg (including battery)SOC holder is an additional charge
