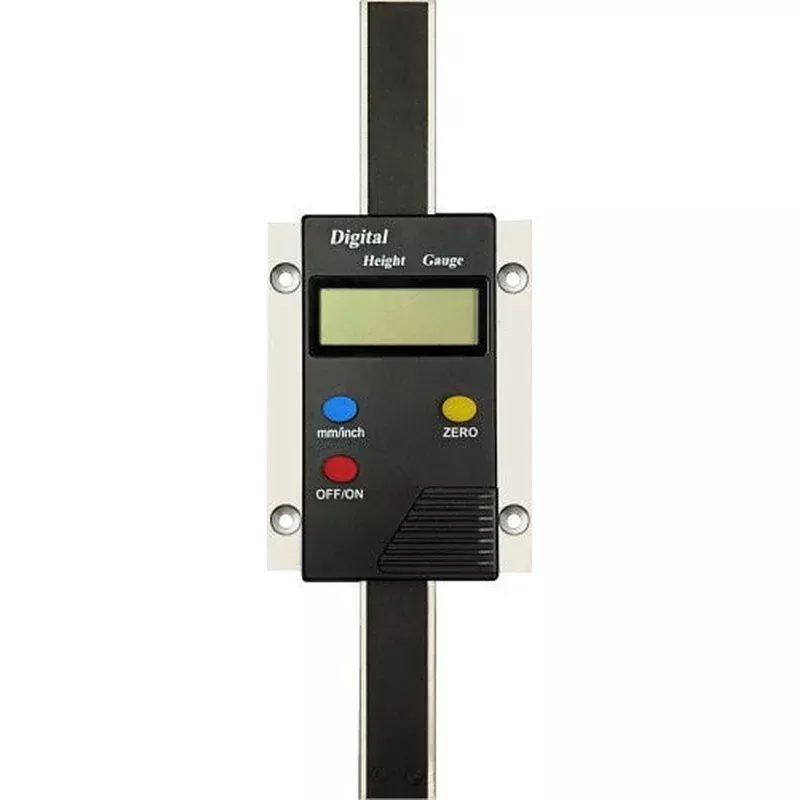

Originally designed as a digital drilling depth gauge for the SIEG SX3L, SX2.7L, and SX2.3 milling machines, this compact digital scale assembly can also be adapted for use on a wide range of other machines and custom projects with suitable modification and mounting arrangements.
Ideal for DIY machine upgrades, custom depth stop systems, or workshop automation projects, the unit features a slim beam design and compact encoder for easy integration where space is limited.
Part Numbers:
SX3- 29SX2.7 2-28SX2.3 1-24
Specifications:
Measuring Range: 0-80mmOverall Length: 160mmBeam Size: 16 x 3.6 x 160mm (W T L)Encoder Size: 56 x 74 x 15.85mm (W H T)
Please note: While originally designed for specific SIEG machines, experienced users may be able to adapt this unit to other machinery or workshop applications with custom modification and fitting.
