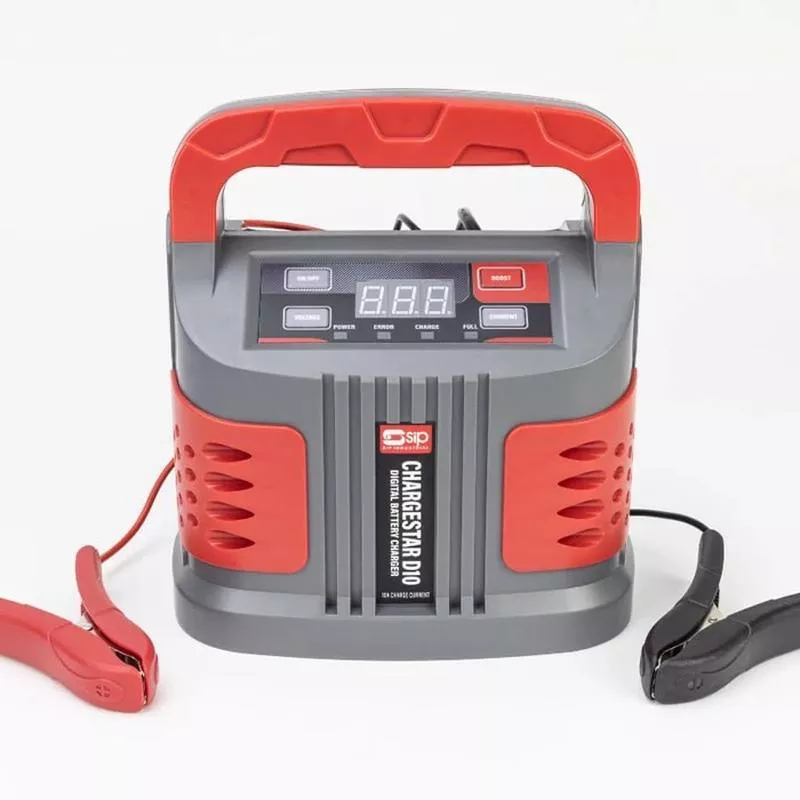

SIP 03502 CHARGESTAR D10 Digital Battery Charger

The SIP CHARGESTAR D10 Digital Battery Charger is a compact and portable digital battery charger designed for all types of 6v/12v lead acid batteries.

Featuring an intelligent microprocessor with 6-step automatic charging cycle, the CHARGESTAR D10 makes battery charging easier, faster and safer.

Applications & uses: Ideal for battery charging applications in automotive and workshop environments.

Key Features of the SIP 03502 CHARGESTAR D10 Digital Battery Charger:

VERSATILE BATTERY CHARGER SUITABLE FOR A VARIETY OF 6V/12V LEAD ACID BATTERIES

• This includes WET, MF, EFB, GEL, AGM and CA battery types.
• Charging capacity of up to 200Ah.

MICROPROCESSOR-CONTROLLED CHARGER MAINTAINS HEALTHY LONG LIFE BATTERY PERFORMANCE

• An intelligent 6-step cycle automatically diagnoses battery condition and voltage before beginning a charging cycle.
• Once battery capacity is full, the unit stops charging and a control panel light is displayed.
• If the voltage is less than 3v, the unit prevents charging as battery recovery will not be possible.
• ‘Boost – Fast Charge’ mode delivers 5mins of continuous 15A charge.
• Supplied with 2x 1.2mtr leads and clip clamps.
• LED display screen and intuitive soft touch control panel.
• Compact and lightweight design with carry handle for easy movement between use.

BUILT-IN SAFETY & PROTECTION FEATURES MAXIMISE USER SAFETY

• Anti-spark system prevents sparks when connecting the clips to the battery terminals.
• Reverse polarity and overcharge protection ensure the unit operates only when correctly connected.
• Fitted with an overheat alarm to prevent charger damage. This automatically restarts once cooled.

Technical Specifications of the SIP 03502 CHARGESTAR D10 Digital Battery Charger:

Input Supply: 220v – 240v 50-60Hz, 220w max.

Input Fuse: 10A

Charging Voltage: 6v / 12v DC

Charging Current: 2A / 5A / 10A

Battery Low Voltage Detector:>3v

Charging Steps: 6; Fully Automatic Charging Cycle

Battery Types: All 12v Lead Acid (WET, MF, EFB, GEL, AGM)

Battery Capacity: 4Ah – 220Ah (Charging)

Temperature Range: 0C – 40C

Protection Level: IP20

Net Weight: 1.18kg

Gross Weight: 1.5kg

Product Dimensions: 206(H) x 220(W) x 105mm(D)

Packaged Dimensions: 230(H) x 230(W) x 115mm(D)
