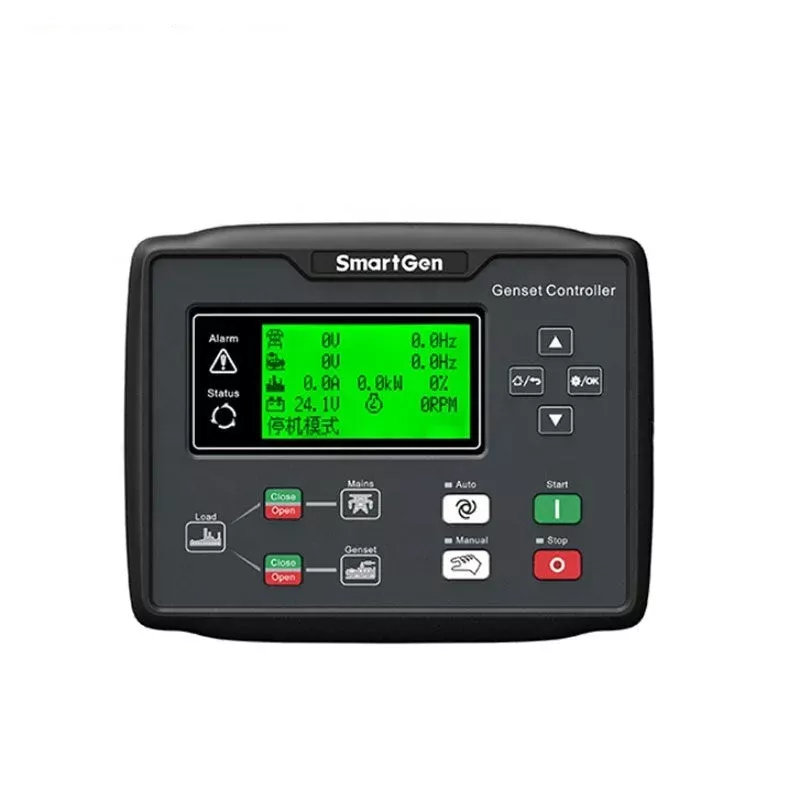

smartgen HGM6120N Genset control module smartgen HGM6120N AMF Controller mains gen system

smartgen HGM6120N Genset control module smartgen HGM6120N AMF Controller mains gen system

Features

-HGM6120U series automatic controller, integrating digital, intelligent and network techniques, is used for automatic control and monitoring system of genset. It can carry out functions of automatic start/stop, data measurement, alarm protection and three “remote” (remote control, remote measure and remote communication).

Adopting Best Component Only

–The controller uses LCD display, optional display interface including Chinese, English, Spanish and Russian with easy and reliable operation.

-Vision never compromise the quality,focus on details.

-Each component is strictly tested before assemblying.

Clear and Accurate

-Factory used the advanced equipment to produce, assembly and inspect.

-Including the high quality screw.

-To ensure the high accuracy.

Perfect Appearance

-10year production experiences,over 10 times the mold improved, makes the body and parts in perfect match.-Nice outside and strong inside.

Display: LCD(132*64)Operation panel:SiliconeController language: Chinese & English & othersSwitch input port: 5Analog input port: 3Relay output: 6AC system: 1P2W/2P3W/3P3W/3P4WAC voltage range: (15360)V(ph-N)AC frequency: 50/60HzPower/current detection and display: yesMains detection: yesProgramming interface: USBReal time clock and history: YesMaintenance function: yesTiming test machine: yesDC working power supply range: DC(8-35)VDimensions (mm): 209*166*45Installation size (mm): 186*141
